LQ070Y3LG4A
GRAPHIC DISPLAY TFT RGB 7Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

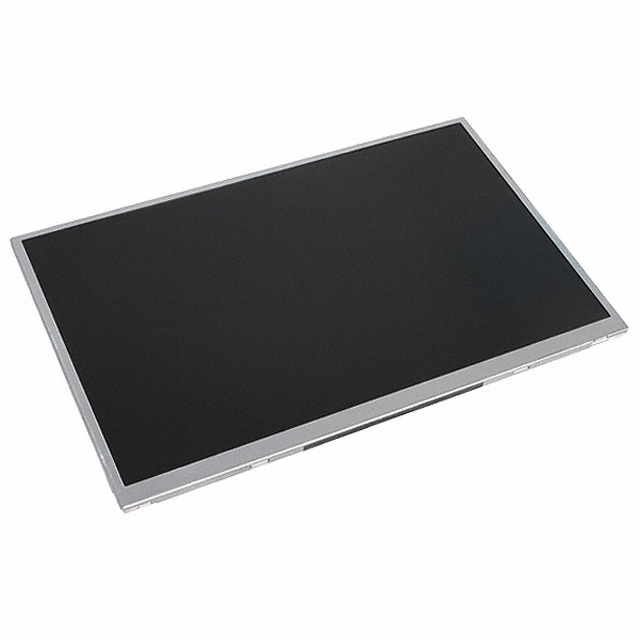

Sharp Microelectronics LQ070Y3LG4A is a 7-inch (177.80mm) diagonal transmissive TFT-Color graphic LCD display module. It features an 800 x 480 (WVGA) resolution and utilizes an LVDS interface for RGB data transmission. The display is backlit with white LEDs and offers a viewing area of 152.40mm W x 91.44mm H. This display is suitable for applications in automotive, industrial automation, and consumer electronics where high-quality graphical output is required.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | LVDS |
| Viewing Area | 152.40mm W x 91.44mm H |
| Dot Pixels | 800 x 480 (WVGA) |
| Diagonal Screen Size | 7"" (177.80mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
