LQ035Q7DB03
GRAPHIC DISPLAY TFT RGB 3.52Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

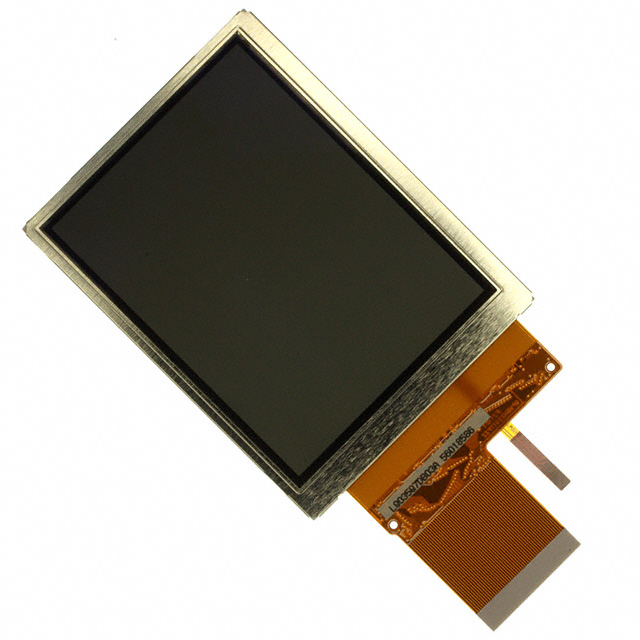

Sharp Microelectronics LQ035Q7DB03, a transmissive TFT-LCD graphic display module, offers a 3.52-inch diagonal screen with a 240 x 320 resolution. This color display utilizes an 18-bit RGB parallel interface for vivid Red, Green, and Blue graphics. Featuring a white LED backlight, it is designed for applications requiring clear visual output. The viewing area measures 53.64mm wide by 71.52mm high. This component is suitable for various industrial and consumer electronics applications where detailed graphical representation is essential.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 18-Bit (RGB) |
| Viewing Area | 53.64mm W x 71.52mm H |
| Dot Pixels | 240 x 320 |
| Diagonal Screen Size | 3.52"" (89.41mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
