LQ030B7DD01
GRAPHIC DISPLAY TFT RGB 3Manufacturer: Sharp Microelectronics
Categories: LCD, OLED, Graphic
Quality Control: Learn More

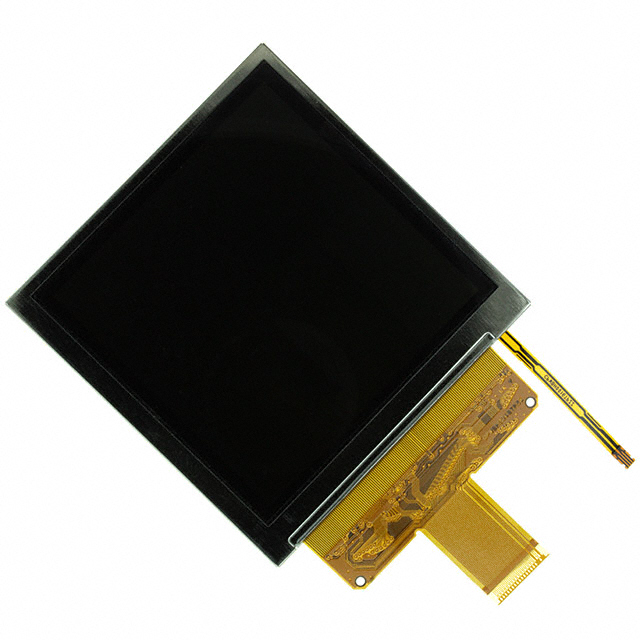

Sharp Microelectronics LQ030B7DD01 is a 3-inch transmissive Thin-Film Transistor (TFT) color graphic LCD display module. This component features a 320 x 320 pixel resolution and supports Red, Green, Blue (RGB) graphics with a 24-bit parallel interface. The display utilizes a white LED backlight for illumination. Its viewing area measures 53.76mm wide by 53.76mm high. This display is suitable for applications in industrial control systems, medical devices, and portable instrumentation where clear, detailed color graphics are essential. The LQ030B7DD01 is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 24-Bit (RGB) |
| Viewing Area | 53.76mm W x 53.76mm H |
| Dot Pixels | 320 x 320 |
| Diagonal Screen Size | 3"" (76.20mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | - |
