GP2W1001YP
IRDA MODULE 115.2KBPS 10SMDManufacturer: Sharp Microelectronics
Categories: IrDA Transceiver Modules
Quality Control: Learn More

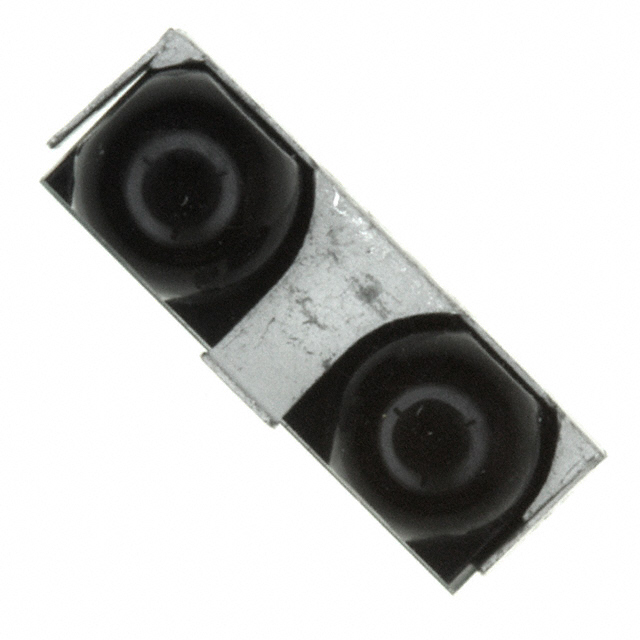

Sharp Microelectronics GP2W1001YP is an SIR IrDA transceiver module, offering a data rate of 115.2kbs. This side-view, 10-SMD component operates across a voltage supply range of 2.7V to 5.5V and features a typical idle current of 200 nA at 25°C. The module supports low power link ranges of 20cm and 1m, and includes a shutdown mode. Designed to meet IrPHY 1.4 standards, the GP2W1001YP is packaged in a 10.0mm x 4.4mm x 3.5mm footprint, supplied on tape and reel. This component is suitable for applications requiring short-range, serial infrared communication, commonly found in consumer electronics and industrial control systems. Its operating temperature range is -10°C to 70°C.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Side View |
| Operating Temperature | -10°C ~ 70°C |
| Size | 10.0mm x 4.4mm x 3.5mm |
| Data Rate | 115.2kbs (SIR) |
| Standards | IrPHY 1.4 |
| Link Range, Low Power | 20cm, 1m |
| Shutdown | Yes |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Idle Current, Typ @ 25°C | 200 nA |
Request a Quote
Clients Also Buy

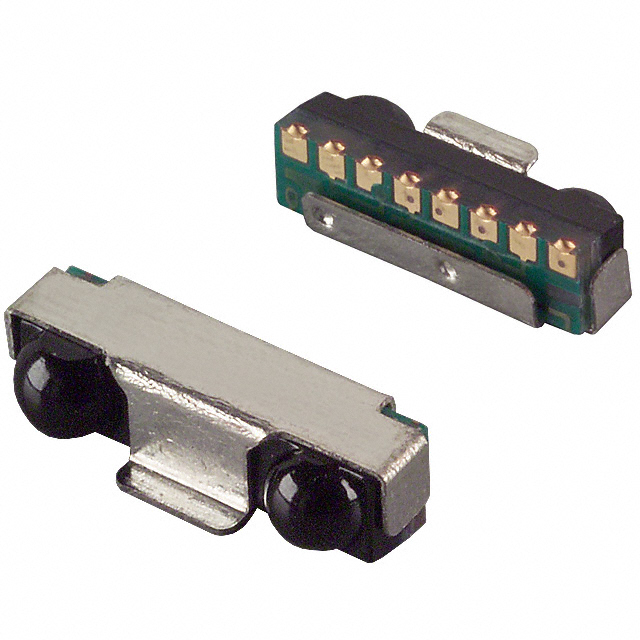

GP2W0110YPS
IRDA MODULE 115.2KBPS 8SMD

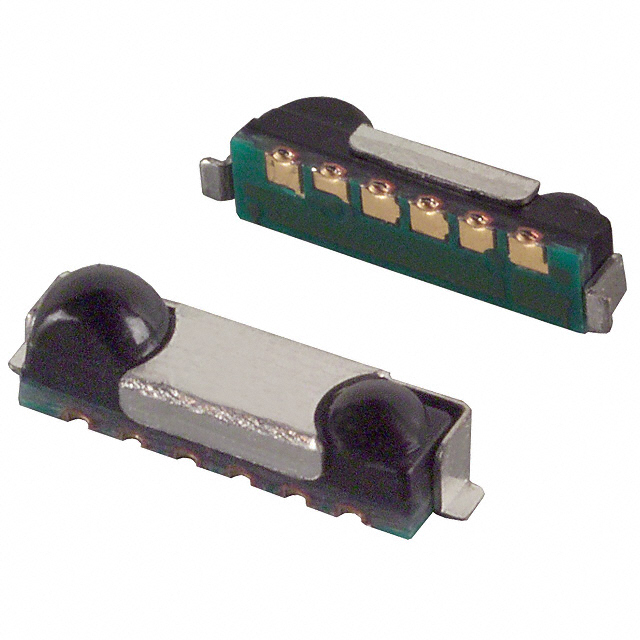

GP2W0118YPS
MODULE IRDA 115.2KBPS 7SMD

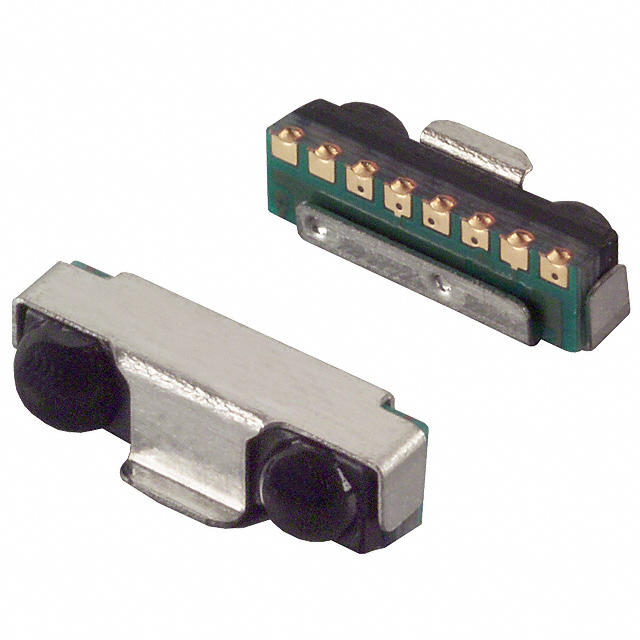

GP2W1002YP0F
