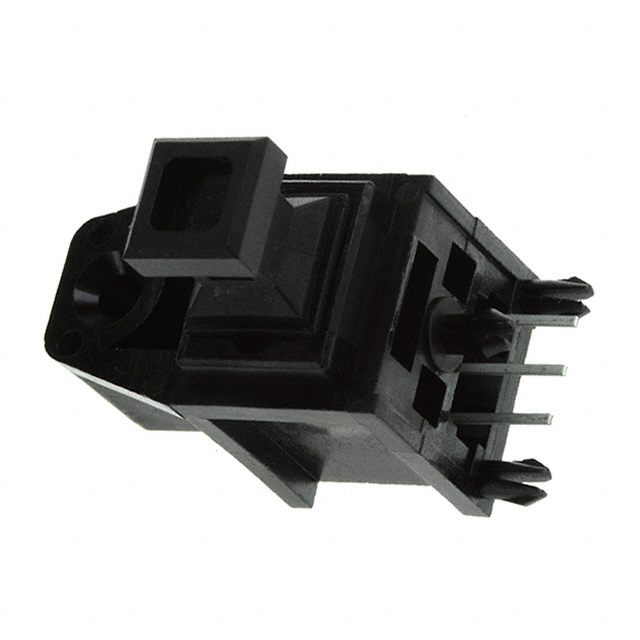

GP1FAV50RK0F
FIBER OPTIC RECEIVER 13.2MBPSManufacturer: Sharp Microelectronics
Categories: Fiber Optic Receivers
Quality Control: Learn More
Sharp Microelectronics GP1FAV50RK0F is a digital fiber optic receiver designed for high-speed data transmission at 13.2Mbps. This component is optimized for applications requiring robust optical signal reception, featuring a minimum receivable power of -24dBm. Operating within a supply voltage range of 4.75V to 5.25V, the GP1FAV50RK0F exhibits a typical supply current of 25mA. Its design is well-suited for digital audio systems and other demanding communication interfaces where reliable fiber optic data reception is critical. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | Digital Audio |
| Data Rate | 13.2Mbps |
| Power - Minimum Receivable | -24dBm |
| Current - Supply | 25 mA |
Request a Quote
Clients Also Buy

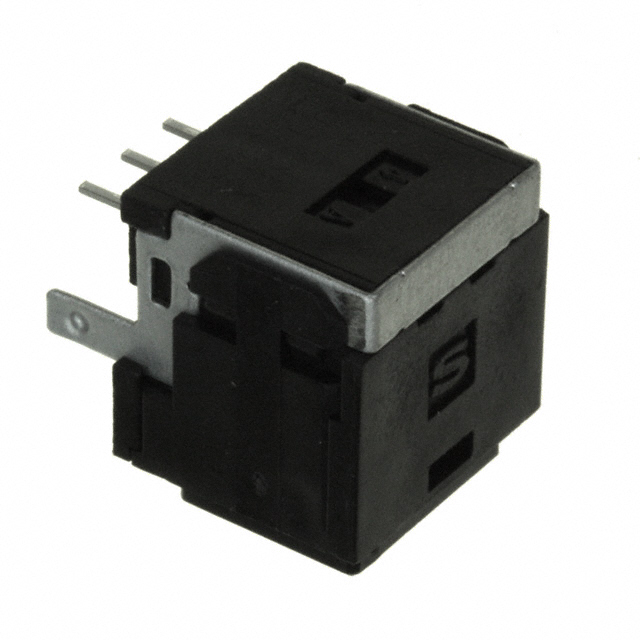

GP1FM513RZ0F
FIBER OPTIC RECEIVER 13.2MBPS
GP1FA513RZ0F
FIBER OPTIC RECEIVER 13.2MBPS

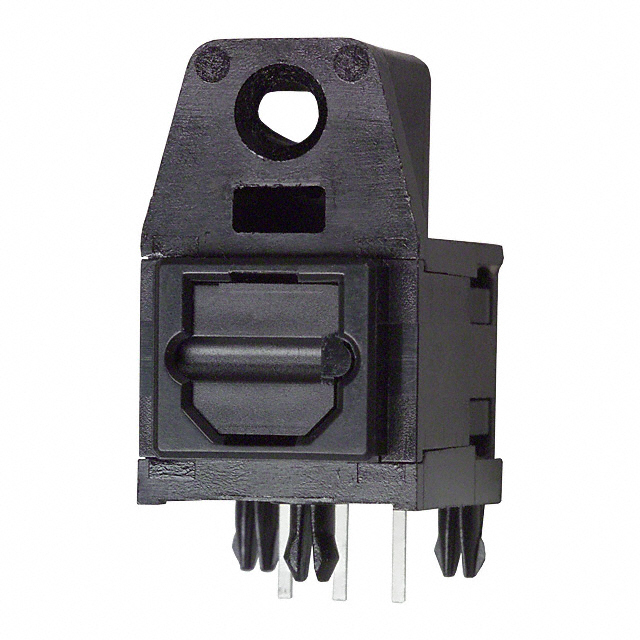

GP1FA313RZ0F
