GP2Y0A02YK
SENSOR OPTICAL 40CM ANALOGManufacturer: Sharp Microelectronics
Categories: Distance Measuring
Quality Control: Learn More
Sharp Microelectronics GP2Y0A02YK is an analog output optical sensor designed for distance measurement applications. This component features a sensing range of 20 to 150 cm, with a typical output voltage difference of 2.05V across its entire operating range. At a distance of 150 cm, the typical output voltage is 400mV. The device operates with a supply voltage of 4.5V to 5.5V and draws a supply current of approximately 50 mA. Its operating temperature range is from -10°C to 60°C. This sensor is commonly utilized in robotics, automation, and consumer electronics where non-contact distance detection is critical. The GP2Y0A02YK is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Analog |
| Sensing Distance | 20 ~ 150cm |
| Operating Temperature | -10°C ~ 60°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Output Difference (Typ) @ Distance | 2.05V @ 20 ~ 150cm |
| Voltage - Output (Typ) @ Distance | 400mV @ 150cm |
| Current - Supply | 50 mA |
Request a Quote
Clients Also Buy

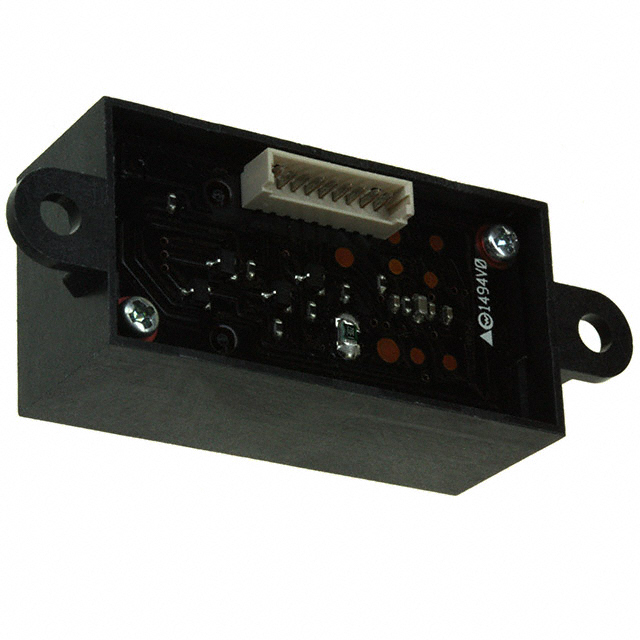

GP2Y3A001K0F
SENSOR OPTICAL 27MM-33MM
GP2Y0AH01K0F
SENSOR OPTICAL 10-80CM DIGITAL

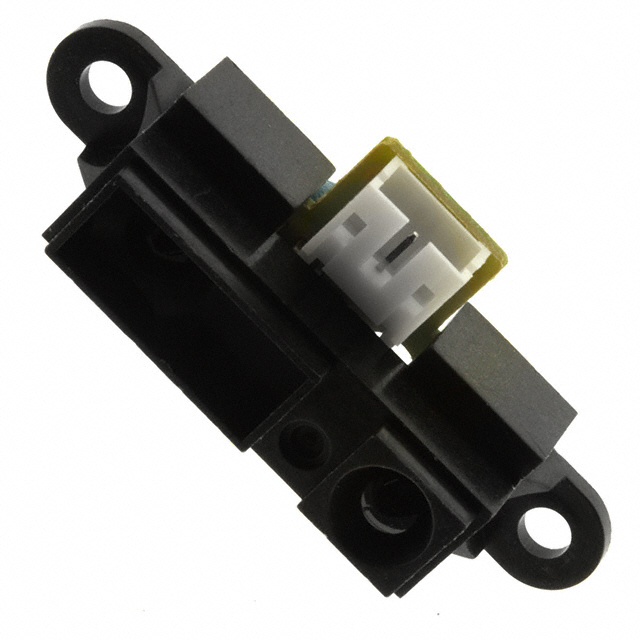

GP2D150A
