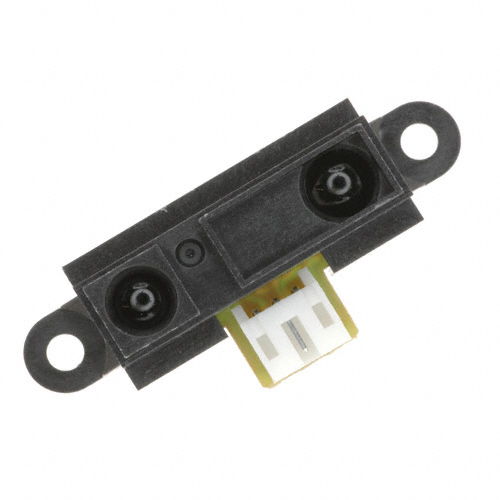

GP2D120XJ00F
SENSOR OPTICAL 27MM-33MM ANALOGManufacturer: Sharp Microelectronics
Categories: Distance Measuring
Quality Control: Learn More
Sharp Microelectronics GP2D120XJ00F, an analog output optical sensor, offers precise distance measurement capabilities ranging from 4cm to 30cm (1.57" to 11.81"). This component is designed for applications requiring non-contact proximity detection and distance sensing. It operates within a supply voltage of 4.5V to 5.5V, drawing a typical supply current of 50mA. The output voltage characteristic is 400mV at 30cm, with a typical output voltage difference across the sensing range of 2.25V from 4cm to 30cm. Operating temperatures are specified from -10°C to 60°C. The GP2D120XJ00F is suitable for integration into various industrial automation, robotics, and consumer electronics systems where accurate distance profiling is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Analog |
| Sensing Distance | 1.57"" ~ 11.81"" (4 ~ 30cm) |
| Operating Temperature | -10°C ~ 60°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Output Difference (Typ) @ Distance | 2.25V @ 4 ~ 30cm |
| Voltage - Output (Typ) @ Distance | 400mV @ 30cm |
| Current - Supply | 50 mA |
Request a Quote
