PQ2CF1J0000H

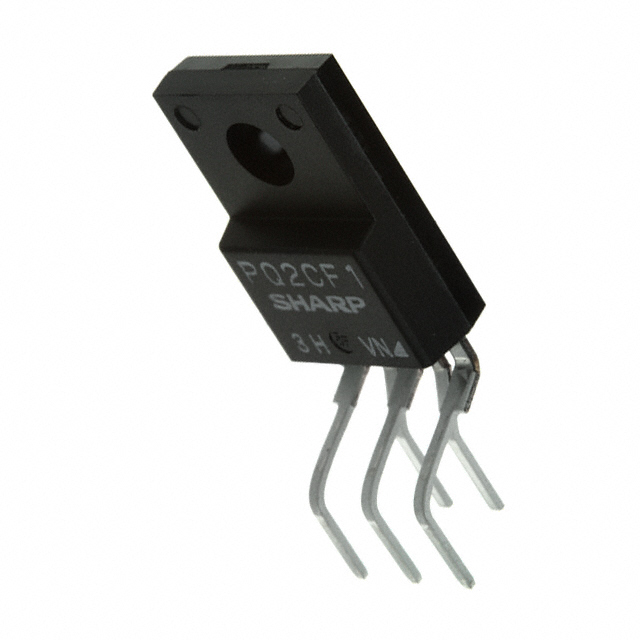

IC REG BST FLYBCK ADJ 2.5A TO220Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Sharp Microelectronics PQ2CF1J0000H is a versatile boost and flyback switching regulator IC. Designed for positive adjustable output voltages from 4.5V up to 35V, this component features a robust 2.5A switch current capability. It operates with an input voltage range of 3.5V to 10V and a switching frequency of 50kHz. The PQ2CF1J0000H is suitable for applications requiring efficient step-up or step-up/step-down power conversion. Its TO-220-5 formed leads package facilitates through-hole mounting. Typical industries utilizing this device include industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Function | Step-Up, Step-Up/Step-Down |
| Current - Output | 2.5A (Switch) |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 50kHz |
| Voltage - Input (Max) | 10V |
| Topology | Boost, Flyback |
| Supplier Device Package | TO-220 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V (Switch) |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 4.5V |
