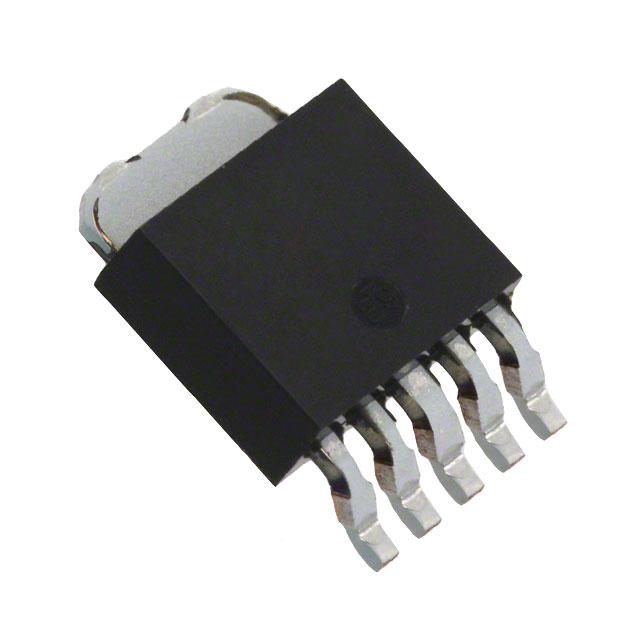

PQ1CZ41H2ZPH
IC REG BUCK ADJ 1.5A SC63Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1CZ41H2ZPH is a versatile 1.5A adjustable output buck switching regulator. This component operates from an 8V to 35V input range, providing a positive or negative adjustable output voltage with a minimum of ±1.26V and a maximum of 35V or -30V respectively. Featuring a 300kHz switching frequency, the PQ1CZ41H2ZPH is designed for step-down applications and utilizes a non-synchronous buck topology. Housed in a TO-252-6, DPAK (5 Leads + Tab) package, also known as SC-63, this surface mount device is supplied on a tape and reel for efficient manufacturing processes. The PQ1CZ41H2ZPH is suitable for use in telecommunications, industrial controls, and consumer electronics. It operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 300kHz |
| Voltage - Input (Max) | 35V |
| Topology | Buck |
| Supplier Device Package | SC-63 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | ±1.26V |
