PQ1CZ38M2ZZH

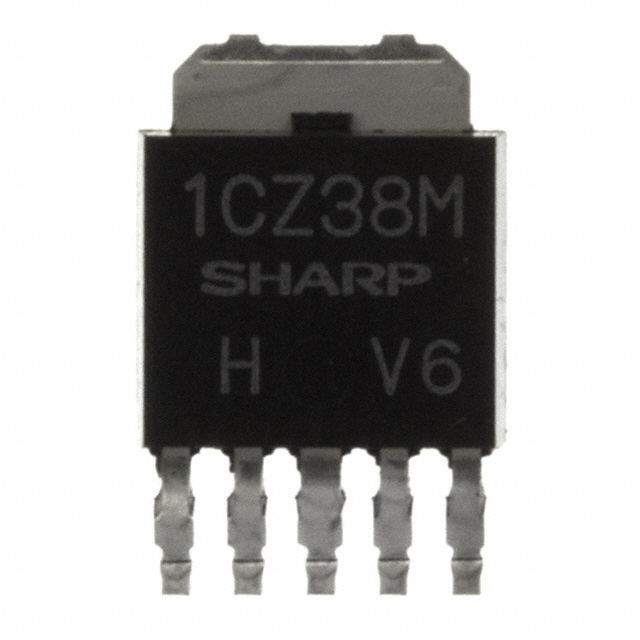

IC REG BUCK ADJ 800MA SC63Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1CZ38M2ZZH is an adjustable buck switching regulator designed for efficient power conversion. This device offers an output current of 800mA and operates with an input voltage range from 8V to 35V. The PQ1CZ38M2ZZH features a switching frequency of 300kHz and provides positive or negative adjustable output voltages, with a minimum configurable output of ±1.26V. Its output voltage can be set up to 35V or -30V. The regulator is housed in a TO-252-6, DPAK package, also known as SC-63, for surface mounting. This component is commonly utilized in industrial automation, automotive, and consumer electronics applications requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 300kHz |
| Voltage - Input (Max) | 35V |
| Topology | Buck |
| Supplier Device Package | SC-63 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | ±1.26V |
