PQ1CZ38M2ZZ
IC REG BUCK ADJ 800MA SC63Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More

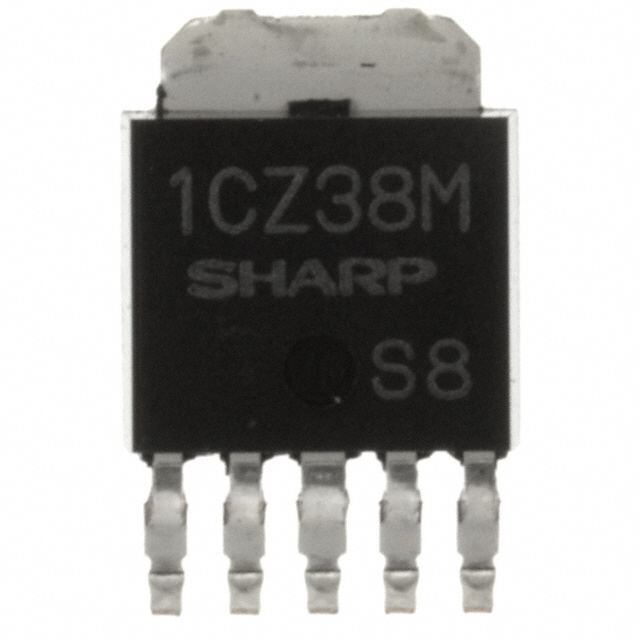

Sharp Microelectronics PQ1CZ38M2ZZ is a low-dropout voltage regulator IC designed for step-down (buck) power conversion. This adjustable output device offers a current capability of 800mA and operates with an input voltage range of 8V to 35V, providing a configurable output voltage from ±1.26V up to 35V (positive) or -30V (negative). Featuring a switching frequency of 300kHz, the PQ1CZ38M2ZZ utilizes a non-synchronous buck topology and is housed in a TO-252-6, DPAK (5 Leads + Tab) package for surface mounting. Its robust design makes it suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 800mA |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 300kHz |
| Voltage - Input (Max) | 35V |
| Topology | Buck |
| Supplier Device Package | SC-63 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | ±1.26V |
