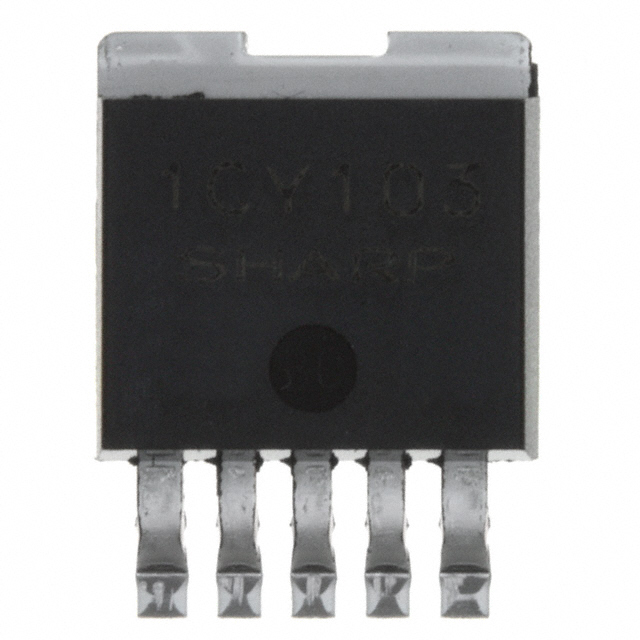

PQ1CY1032ZZ
IC REG BUCK ADJ 3.5A TO263Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1CY1032ZZ is a buck switching regulator IC designed for efficient power conversion. This adjustable positive or negative output device offers a robust 3.5A output current capability, making it suitable for demanding applications. Operating with an input voltage range from 8V to 35V, it provides a versatile solution for various power supply designs. The PQ1CY1032ZZ features a 150kHz switching frequency and is housed in a TO-263-6, D2PAK package, facilitating surface mount integration. Its adjustable output voltage, with a minimum of ±1.26V, allows for precise power delivery. This component is commonly utilized in industrial and consumer electronics requiring reliable step-down voltage regulation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3.5A |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 35V |
| Topology | Buck |
| Supplier Device Package | TO-263 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | ±1.26V |
