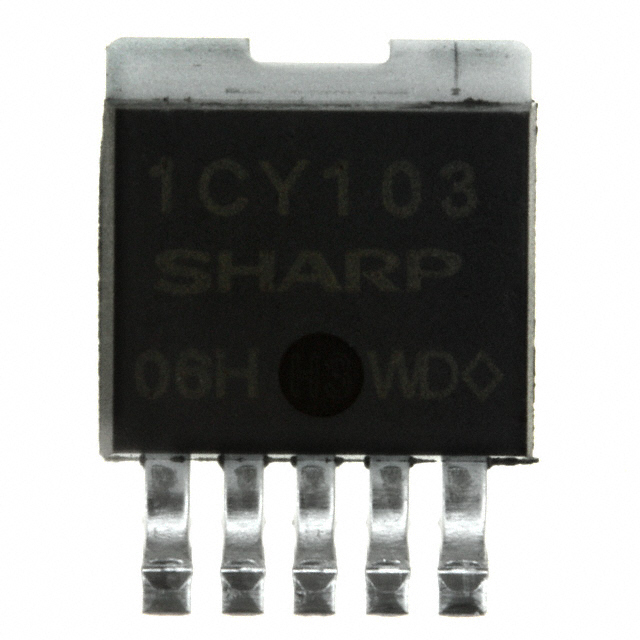

PQ1CY1032ZPH
IC REG BUCK ADJ 3.5A TO263Manufacturer: Sharp Microelectronics
Categories: DC DC Switching Regulators
Quality Control: Learn More
Sharp Microelectronics PQ1CY1032ZPH is a buck switching regulator IC designed for efficient power conversion. This device offers an adjustable output voltage, configurable for positive or negative regulation with a minimum output of ±1.26V. It supports an output current of up to 3.5A and operates with a switching frequency of 150kHz. The PQ1CY1032ZPH accepts input voltages ranging from 8V to 35V, with a maximum output capability of 35V for positive configurations and -30V for negative configurations. The component is housed in a TO-263-6, D2PAK package, suitable for surface mounting. This regulator is commonly utilized in industrial and consumer electronics applications requiring robust DC-DC conversion. It features a non-synchronous buck topology and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3.5A |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 35V |
| Topology | Buck |
| Supplier Device Package | TO-263 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 35V, -30V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | ±1.26V |
