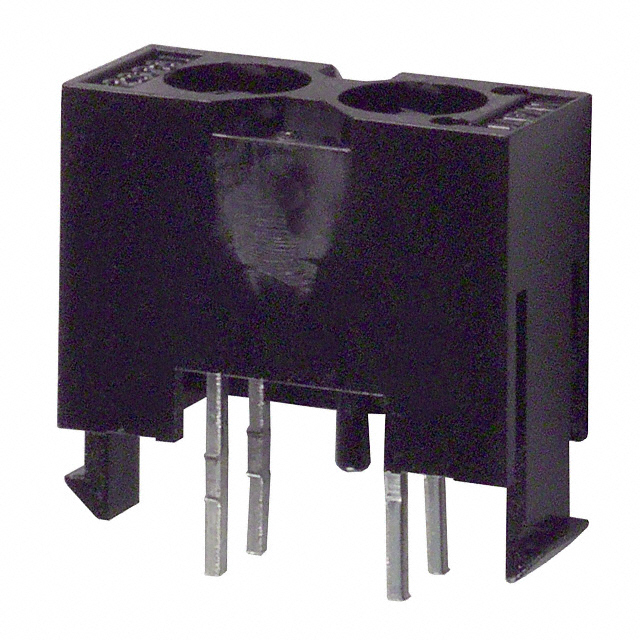

GP2S28
PHOTOINTERRUPTER REFLEC 6MM PCBManufacturer: Sharp Microelectronics
Categories: Analog Output
Quality Control: Learn More
Sharp Microelectronics GP2S28 is a reflective optical sensor designed for PCB mounting. This component features a phototransistor output and a sensing distance of 0.551 inches (14mm). It operates with a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 60 mA. The emitter-collector breakdown voltage is rated at 35 V. The GP2S28 offers response times of 20µs for both rise and fall. This device is suitable for applications requiring non-contact detection of object presence or position through reflection. It finds utility in various industrial automation, robotics, and consumer electronics sectors. The GP2S28 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Output Type | Phototransistor |
| Sensing Distance | 0.551"" (14mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Response Time | 20µs, 20µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Current - DC Forward (If) (Max) | 60 mA |
Request a Quote
Clients Also Buy

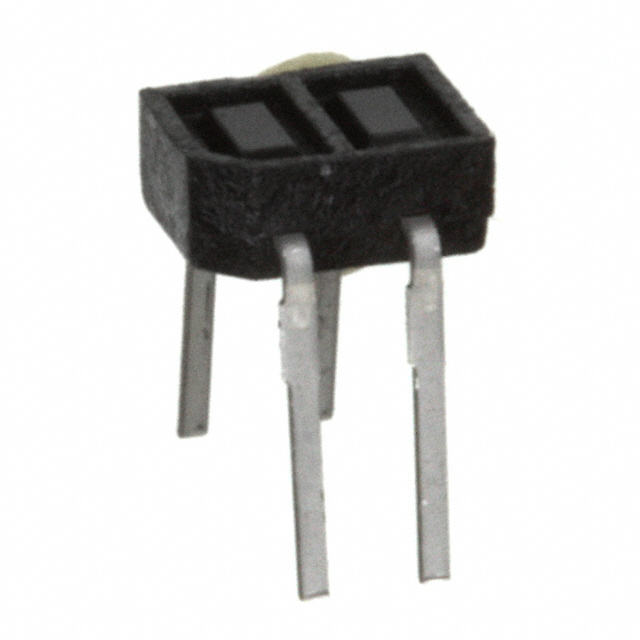

GP2S24BJ000F
PHOTOINTERRUPTER REFL 0.7MM PCB

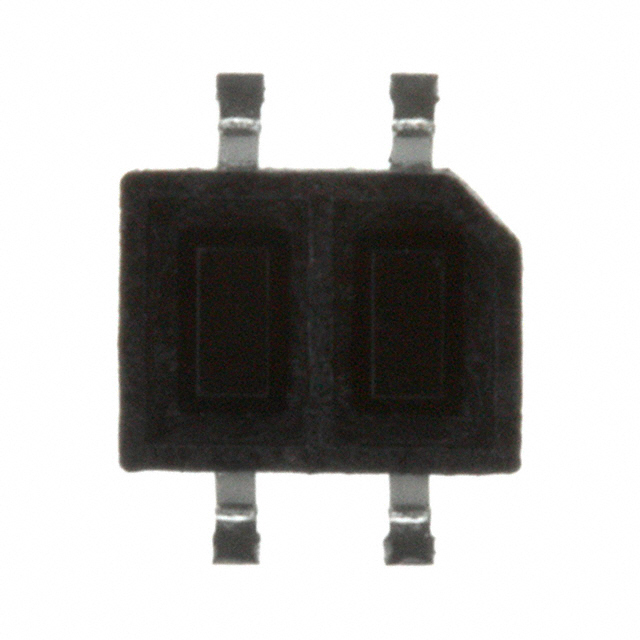

GP2S27T2J00F
