SAW84A0C-RT-GA
LED ACRICH WARM WHITE 3000K 2SMDManufacturer: Seoul Semiconductor Inc.
Categories: LED White Lighting
Quality Control: Learn More
Seoul Semiconductor Inc. presents the Acrich A4 series SAW84A0C-RT-GA, a warm white LED designed for high-voltage AC operation. This component features a correlated color temperature (CCT) of 3000K and a typical forward voltage of 55VAC at 20mA. It offers a luminous flux of 65 lumens at 20mA test current and a wide viewing angle of 135°. The LED is housed in a 2828 (7070 Metric) package with dimensions of 0.276" L x 0.276" W (7.00mm x 7.00mm) and a seated height of 0.123" (3.12mm). This device is supplied on a Tape & Reel (TR) for automated assembly. The Acrich A4 series is suitable for general lighting applications requiring direct AC power input.
Additional Information
Series: Acrich A4RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2828 (7070 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.276"" L x 0.276"" W (7.00mm x 7.00mm) |
| Mounting Type | - |
| Voltage - Forward (Vf) (Typ) | 55VAC |
| Current - Test | 20mA |
| Viewing Angle | 135° |
| Current - Max | 20mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.123"" (3.12mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 75 |
| Flux @ 25°C, Current - Test | 65lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy

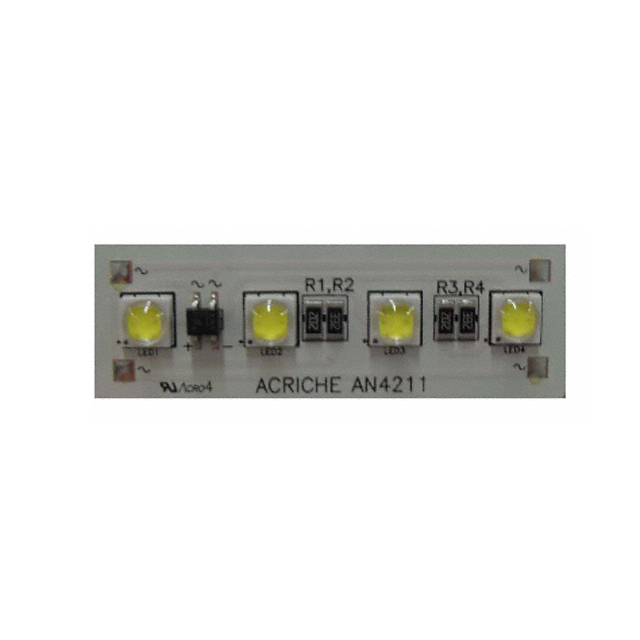

AN4211
LED ENG ACRICH A4 LNR STR 3000K
AN4214
LED ENG ACRICH A4 WHT RND 3000K

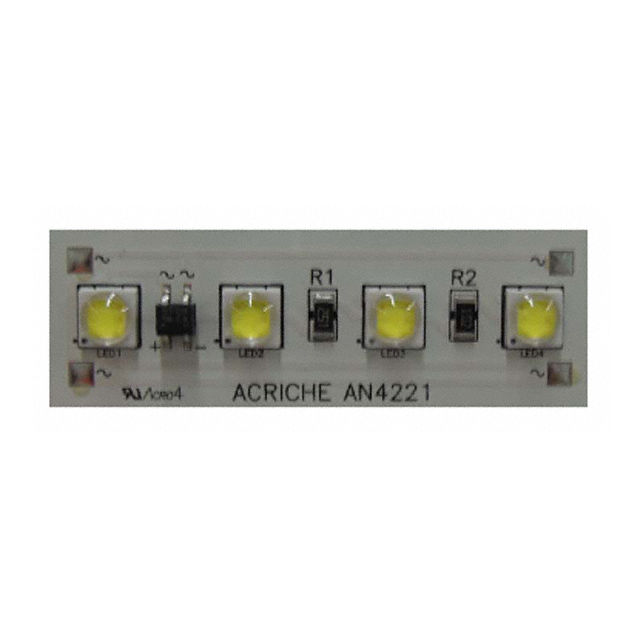

AN4221
