LCW100Z1
LED COOL WHITE SMDManufacturer: Seoul Semiconductor Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

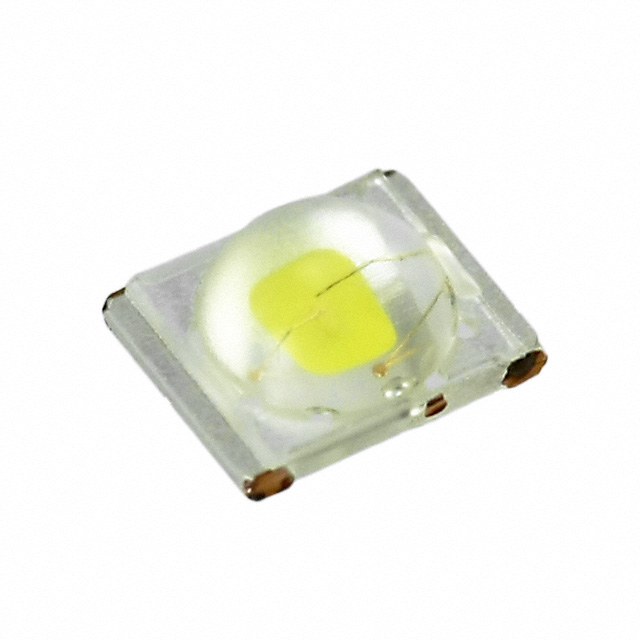

Seoul Semiconductor Inc. LCW100Z1 is a cool white LED with a correlated color temperature of 5400K. This discrete LED is housed in a 1411 (3528 Metric) surface-mount package, measuring 3.50mm x 2.80mm with a height of 1.60mm. It features a round, domed top lens with a diameter of 2.60mm. The typical forward voltage is 3.2V, and it achieves a millicandela rating of 2000mcd at a test current of 20mA. The viewing angle is 120°. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for various indication purposes. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | White, Cool |
| Size / Dimension | 3.50mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5400K |
| Supplier Device Package | - |
| Lens Transparency | - |
| Lens Style | Round with Domed Top |
| Lens Size | 2.60mm Dia |
Request a Quote
Clients Also Buy

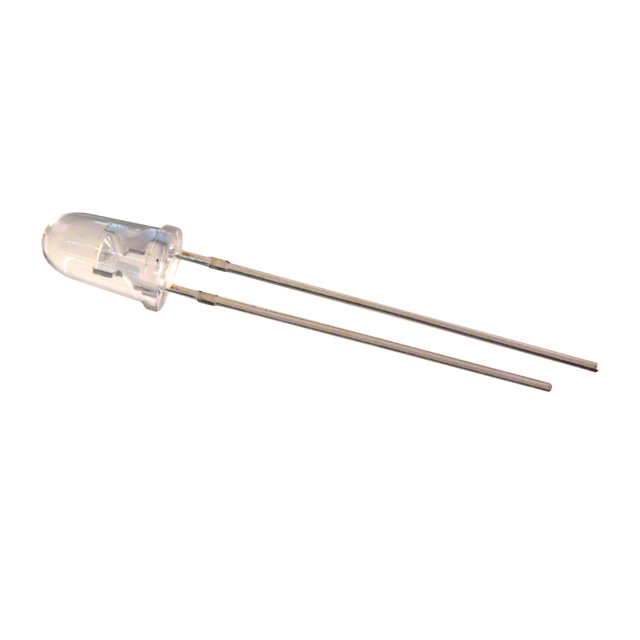

LW520A
LED WHITE ROUND 5MM T/H

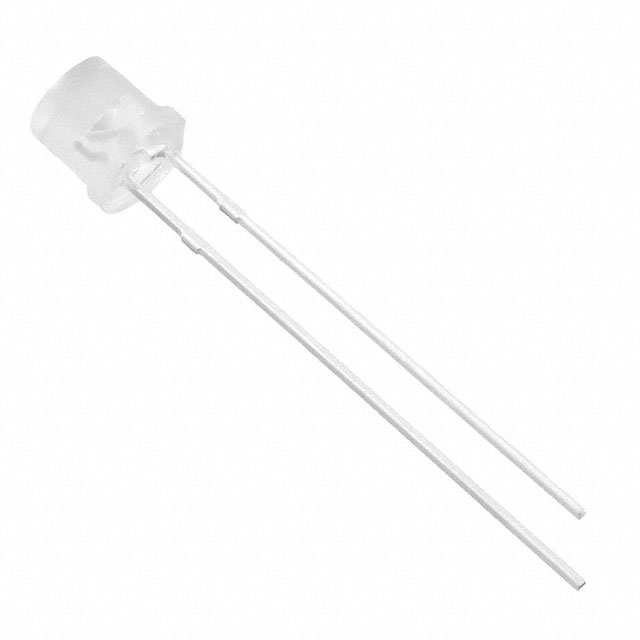

LW500AM
