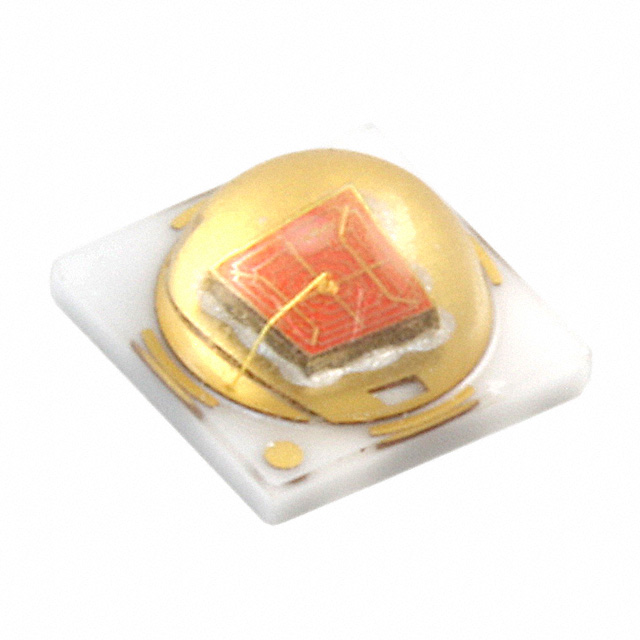

SZA05A0A
LED Z-POWER AMBER 592NM SMDManufacturer: Seoul Semiconductor Inc.
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color Z Power Amber 592nm (Typ) 1414 (3535 Metric)
Additional Information
Series: Z PowerRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Amber |
| Wavelength | 592nm (Typ) |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Current - Test | 350mA |
| Viewing Angle | 123° |
| Current - Max | 700mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 57 lm/W |
| Height - Seated (Max) | 0.085"" (2.15mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 46lm (Typ) |
