SMJE3V04W1P3-GA
LED ENG ACRICH2 WHT ROUND 3000KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

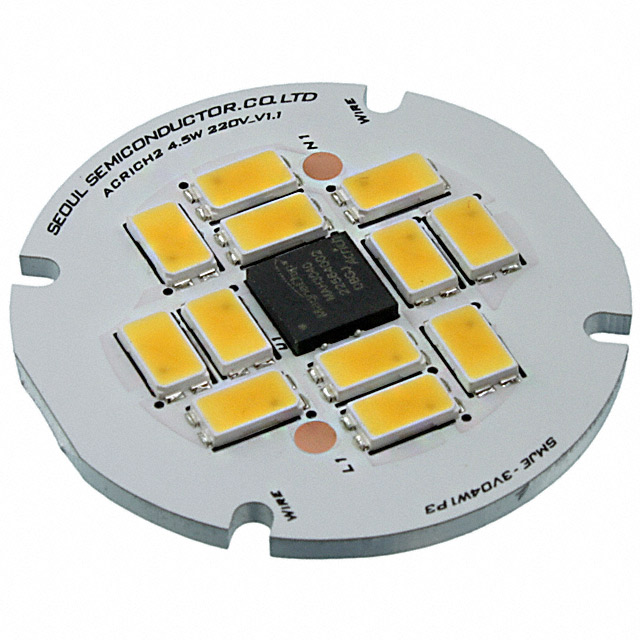

Seoul Semiconductor Inc. presents the SMJE3V04W1P3-GA, an Acrich2 series LED Engine. This white, round LED module delivers a typical luminous flux of 330lm at 25°C, with a correlated color temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80. Designed for efficient illumination, it achieves 67 lm/W. The module features a flat lens and a broad 120° viewing angle, with a diameter of 33.00mm and a height of 2.50mm. This component is suitable for general lighting applications, architectural lighting, and display backlighting. It is supplied in tray packaging.
Additional Information
Series: Acrich2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White |
| Wavelength | - |
| Size / Dimension | 33.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 2.50mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 67 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 330lm (Typ) |
