SMJE2V12W1P3-EA
LED ENG ACRICH2 WHT ROUND 4000KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

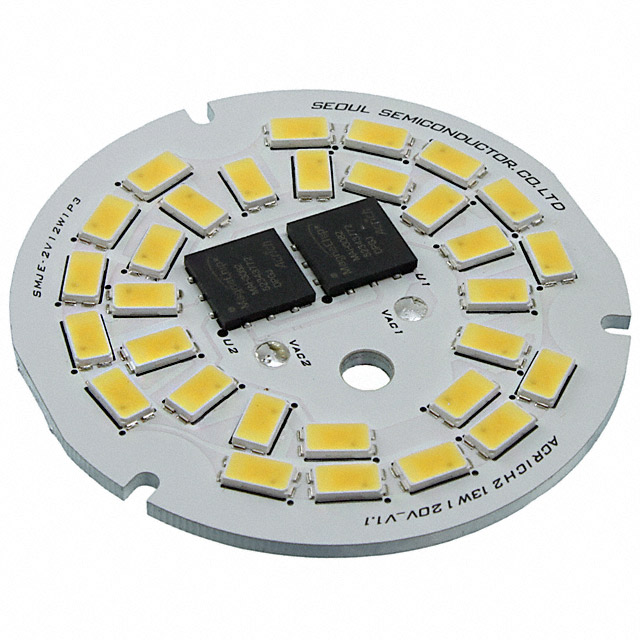

Seoul Semiconductor Inc. Acrich2 series SMJE2V12W1P3-EA is a white LED engine delivering 1210 lumens typical at 25°C. This neutral white LED features a 4000K color temperature and a CRI of 80, providing excellent color rendition. The component has a round configuration with a 50mm diameter and a height of 2.50mm. Its flat lens type and wide 120° viewing angle make it suitable for various lighting applications. The SMJE2V12W1P3-EA operates with exceptional efficacy, achieving 87 lm/W at test conditions. This LED engine is typically used in general lighting, architectural lighting, and commercial display applications. It is supplied in trays for efficient handling and integration into larger assemblies.
Additional Information
Series: Acrich2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 50.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 2.50mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 87 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1210lm (Typ) |
