SMJE2V08W1P3-GA
LED ENG ACRICH2 WM WH RND 3000KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

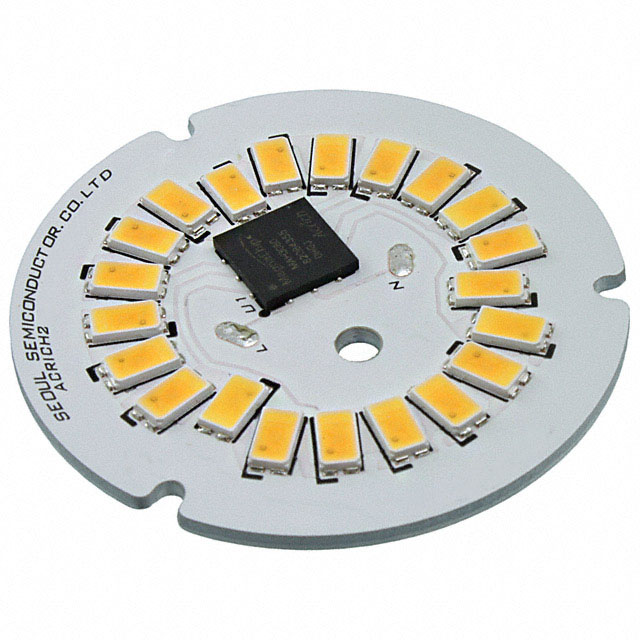

Seoul Semiconductor Inc. SMJE2V08W1P3-GA is a high-performance Acrich2 series LED engine module delivering 650lm typical luminous flux at 25°C. This white LED engine operates with a warm white color temperature of 3000K and features an 80 CRI for accurate color reproduction. Its round configuration with a 46.00mm diameter and a 2.50mm height, coupled with a flat lens, makes it suitable for various illumination applications. The module offers an efficient 67 lm/W efficacy. This component is widely utilized in general lighting, architectural lighting, and commercial applications.
Additional Information
Series: Acrich2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 46.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 2.50mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 67 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 650lm (Typ) |
Request a Quote
