SMJE2V04W1P3-EA
LED ENG ACRICH2 WHT ROUND 4000KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

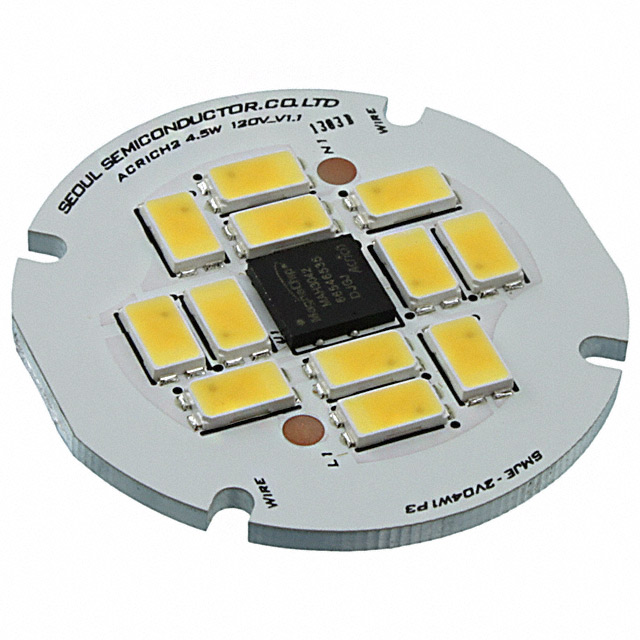

Seoul Semiconductor Inc. Acrich2 LED Engine, part number SMJE2V04W1P3-EA. This neutral white LED module features a 4000K color temperature and an 80 CRI, delivering a typical luminous flux of 400lm. Optimized for efficiency, it achieves 87 lm/W at its test current and temperature. The module has a round, flat lens and a 120° viewing angle, with a compact form factor measuring 33.00mm in diameter and 2.50mm in height. This component is suitable for general lighting applications, architectural lighting, and commercial displays. It is supplied in tray packaging.
Additional Information
Series: Acrich2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 33.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 2.50mm |
| Current - Test | - |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 87 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 400lm (Typ) |
