SDW92F1C-GA
LED COB ZC12 WARM WHT SQU 3000KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

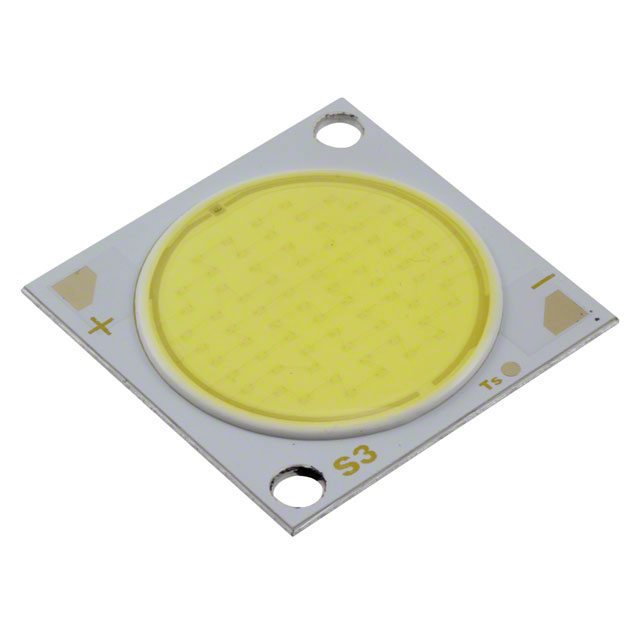

Seoul Semiconductor Inc. ZC12 series Chip On Board (COB) LED, part number SDW92F1C-GA, offers a warm white illumination with a correlated color temperature (CCT) of 3000K and a high Color Rendering Index (CRI) of 90. This square-configured COB is designed for efficient operation, drawing a maximum current of 480mA and a test current of 350mA, achieving a luminous efficacy of 100 lm/W at the test conditions. The component provides a typical luminous flux of 1295lm at 25°C, with a forward voltage of 37V. Its compact dimensions of 19.00mm L x 19.00mm W and a low profile of 2.30mm make it suitable for various lighting applications, including architectural lighting, retail displays, and general illumination. The LED is supplied in trays.
Additional Information
Series: ZC12RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 37V |
| Height | 2.30mm |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Lens Type | - |
| Current - Max | 480mA |
| Lumens/Watt @ Current - Test | 100 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1295lm (Typ) |
