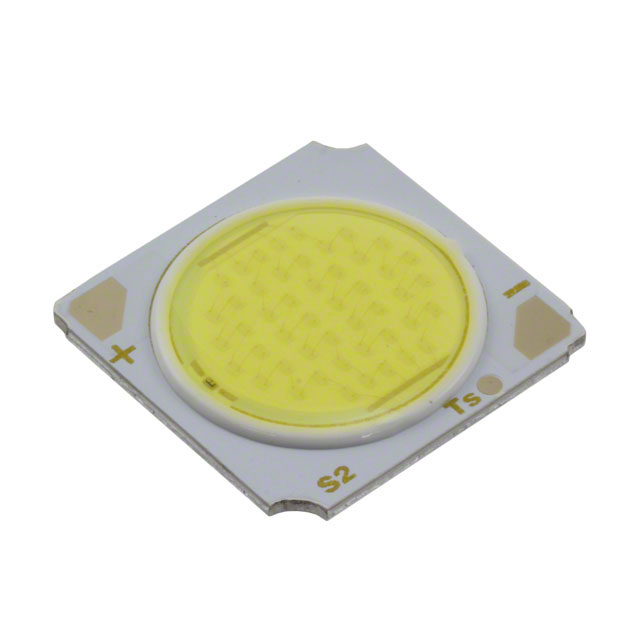

SDW03F1C-H1/H2-BA
LED COB ZC18 COOL WHT SQU 5600KManufacturer: Seoul Semiconductor Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Seoul Semiconductor Inc. ZC18 Z-Power COB LED, part number SDW03F1C-H1-H2-BA, offers a cool white (5600K) light output with a typical luminous flux of 2520lm at 25°C. This Chip On Board (COB) module features a square configuration with dimensions of 19.00mm L x 19.00mm W and a low profile of 2.30mm. Designed for efficiency, it achieves 136 lm/W at a test current of 500mA and a maximum current of 640mA. The forward voltage (Vf) is typically 37V. With a broad 120° viewing angle and a CRI of 70, this component is suitable for general illumination, architectural lighting, and automotive applications. It is supplied in trays.
Additional Information
Series: ZC18 Z-Power COBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 37V |
| Height | 2.30mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 640mA |
| Lumens/Watt @ Current - Test | 136 lm/W |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2520lm (Typ) |
