P158-300S-C1A
SENSOR 299.94PSIS 1/4""NPT 4.5VManufacturer: Sensata Technologies, Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Sensata Technologies, Inc. 150 series pressure sensor, part number P158-300S-C1A, is a sealed gauge transducer with a 1/4" NPT male port. This component offers a 0.5 V to 4.5 V analog voltage output, calibrated for an operating pressure range of 300 PSI (2068.43 kPa), with a maximum pressure rating of 900 PSI (6205.28 kPa). It features amplified and temperature-compensated output, providing ±2% accuracy across its operating temperature range of -30°C to 100°C. The sensor is designed for a supply voltage of 4.5 V to 5.5 V. This device is commonly utilized in industrial automation, HVAC systems, and fluid power applications.
Additional Information
Series: 150RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | Cylinder |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 300PSI (2068.43kPa) |
| Pressure Type | Sealed Gauge |
| Accuracy | ±2% |
| Operating Temperature | -30°C ~ 100°C |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 1/4"" (6.35mm) NPT |
| Supplier Device Package | - |
| Port Style | Threaded |
| Maximum Pressure | 900PSI (6205.28kPa) |
Request a Quote
Clients Also Buy

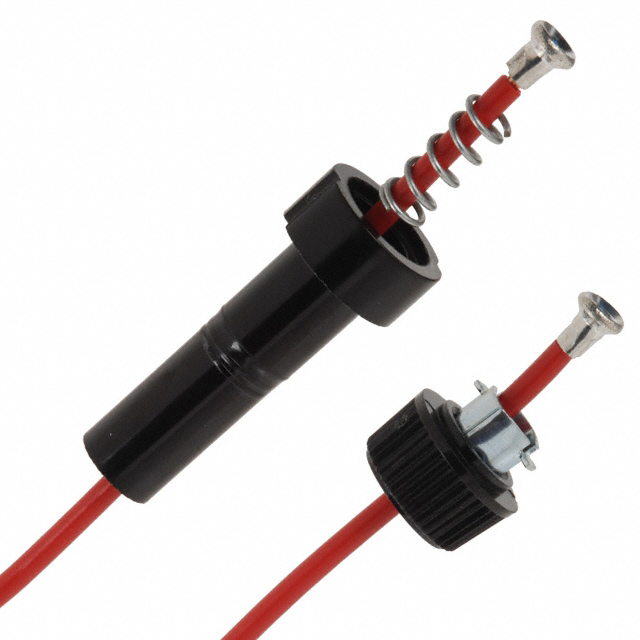

01500079Z
FUSE HOLDER CART 32V 20A IN LINE

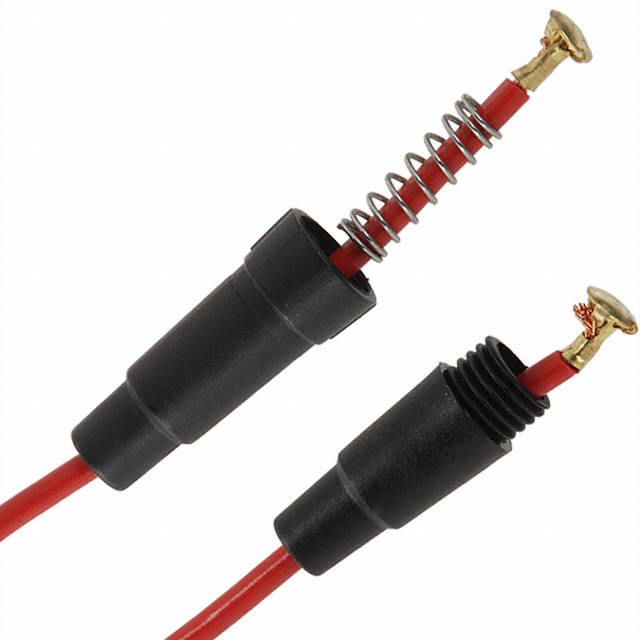

01500274Z
FUSE HLDR CART 350V 10A IN LINE

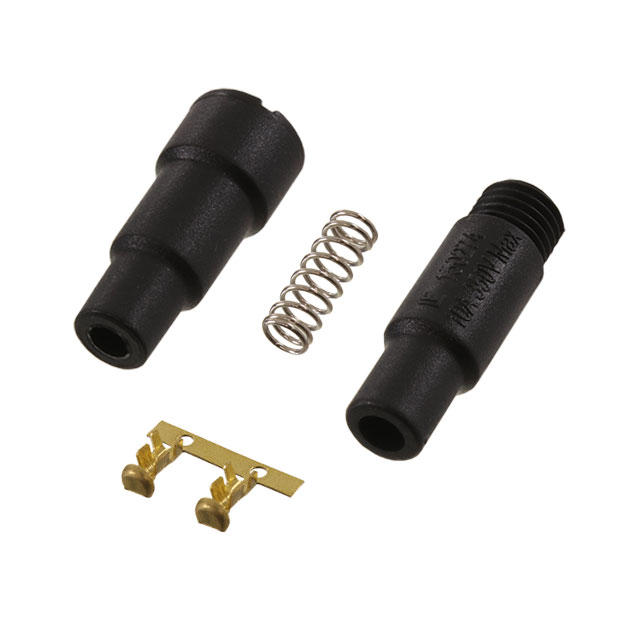

01500274ZXU
