M252532
MODULE POWER 25A 600V SCR BRIDGEManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More

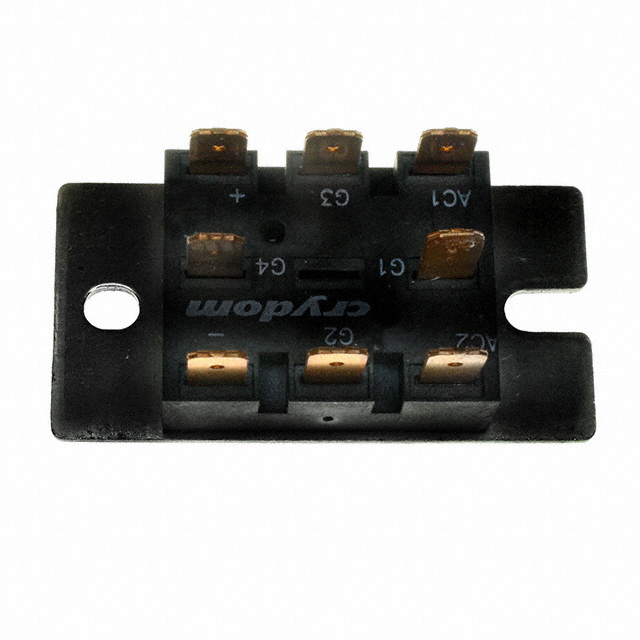

Sensata-Crydom M252532 is a single-phase SCR bridge module designed for robust power control applications. This chassis-mount component features four SCRs with a 600V off-state voltage rating and a maximum surge current capability of 300A at 60Hz. The module's design facilitates efficient heat dissipation, crucial for high-power systems. It requires a gate trigger current of 50 mA (max) and a gate trigger voltage of 2.5V (max), with a hold current of 75 mA (max). The M252532 is utilized across various industrial sectors including motor drives, power supplies, and welding equipment where reliable and precise power switching is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Structure | Bridge, Single Phase - All SCRs |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 60Hz |
| Number of SCRs, Diodes | 4 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 600 V |
