M252513F
MODULE POWER 25A 320VAC SCR CCManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More

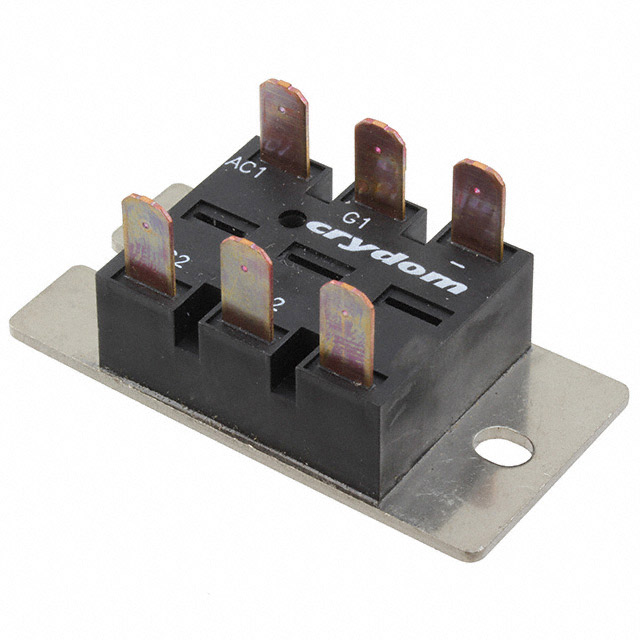

Sensata-Crydom M252513F SCR Module. This single-phase bridge configuration features two SCRs and two diodes, designed for chassis mount applications. It offers an 800V off-state voltage capability and handles a continuous current of 25A. The module exhibits a surge current rating of 300A at 60Hz. Gate trigger characteristics include a maximum voltage of 2.5V and a maximum current of 50mA. Hold current is rated at a maximum of 75mA. This component is suitable for power control applications across various industrial sectors, including motor control and power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 800 V |
