L314F
MODULE SCR/DIODE 15A 480VAC PCBManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
Sensata-Crydom L314F is a single-phase SCR/Diode module featuring a 1.2 kV blocking voltage and a 15A current rating. This through-hole mounted module, part of the Series L, utilizes a bridge configuration (Layout 1) with two SCRs and two diodes. It is designed for robust performance with a non-repetitive surge current capability of 2250A at 60Hz. The gate trigger specifications include a maximum current of 100 mA and a maximum voltage of 2.5 V. Operating across a temperature range of -40°C to 125°C (TJ), this component is suitable for applications in industrial power control and motor drives. The module is supplied in bulk packaging.
Additional Information
Series: LRoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.2 kV |
Request a Quote
Clients Also Buy
L312F
MODULE SCR/DIODE 15A 240VAC PCB

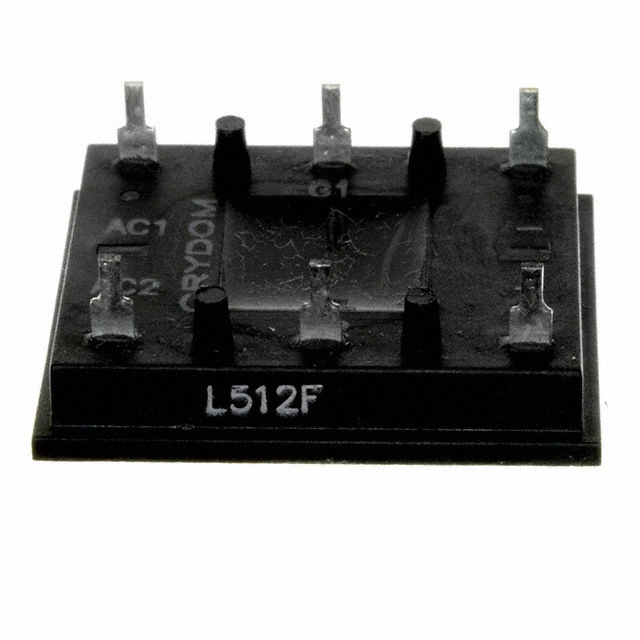

L512F
