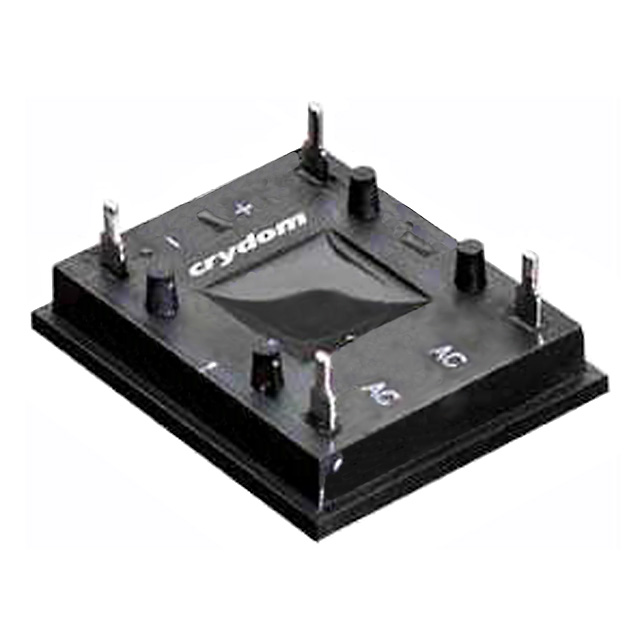

L312F
MODULE SCR/DIODE 15A 240VAC PCBManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Through Hole Module
Additional Information
Series: LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 600 V |
