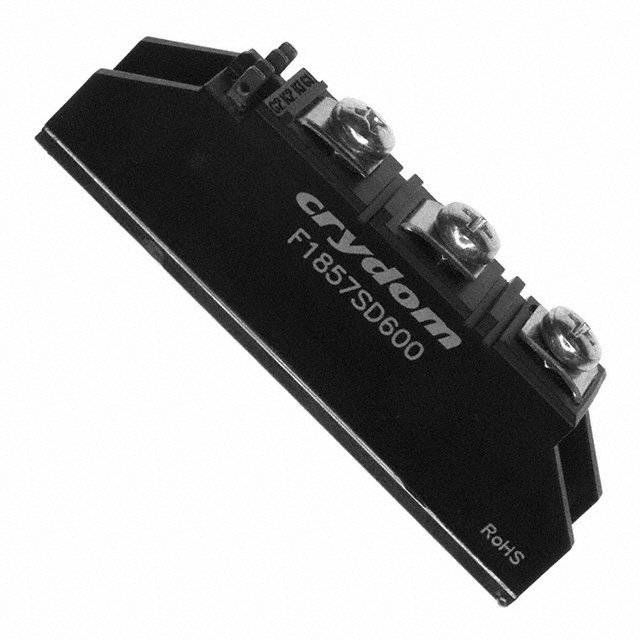

F1857SD600
MODULE SCR/DIODE 55A 240VACManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
Sensata-Crydom F18 Series F1857SD600 SCR/Diode Module. This chassis mount module features a series connection of two SCRs, offering a 600V off-state voltage rating and a continuous on-state current of 55A. The F1857SD600 is designed for high-power switching applications, with a non-repetitive surge current capability of 1500A at 60Hz. Gate trigger requirements are 150mA (Igt) and 3V (Vgt). Operating temperature ranges from -40°C to 125°C (TJ). This component is commonly employed in industrial motor control, power supplies, and welding equipment. Packaging is supplied in bulk.
Additional Information
Series: F18RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 600 V |
