F1857SD1200

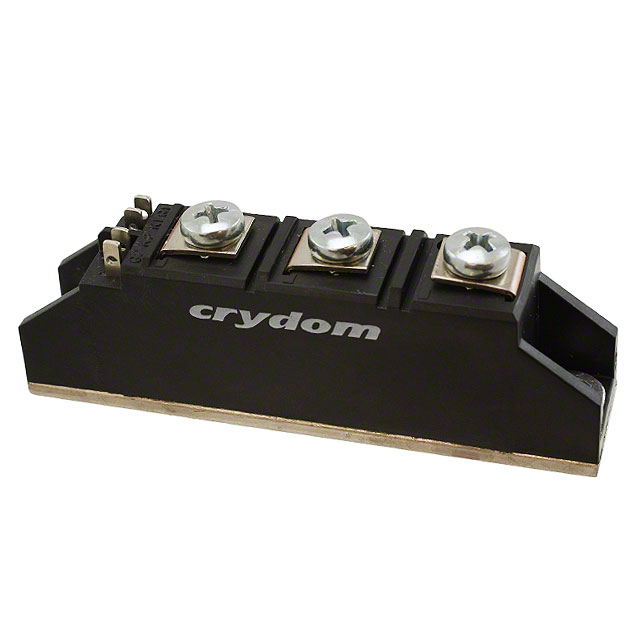

MODULE SCR/DIODE 55A 480VACManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
Sensata-Crydom F18 Series F1857SD1200 is a robust SCR module featuring a series connection of two SCRs. This chassis mount component is rated for 1200V off-state voltage and 55A RMS current, with a high surge capability of 1500A at 60Hz. The module operates efficiently across a temperature range of -40°C to 125°C (TJ). It requires a gate trigger current (Igt) of 150mA maximum and a gate trigger voltage (Vgt) of 3V maximum. This module is commonly utilized in industrial motor control, power supplies, and welding equipment. Packaged in Bulk.
Additional Information
Series: F18RoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.2 kV |
