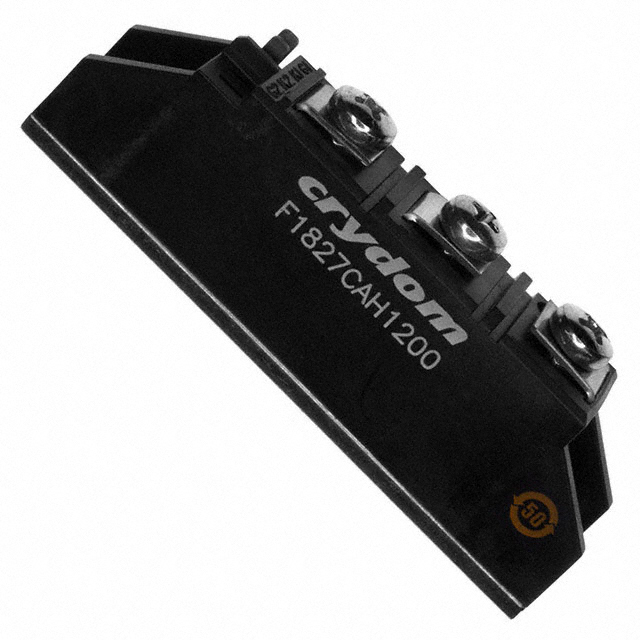

F1827CAH1200
MODULE SCR/DIODE 25A 480VACManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
Sensata-Crydom F18 Series SCR/Diode Module, part number F1827CAH1200, offers a robust solution for high-power switching applications. This common anode module integrates one SCR and one diode, facilitating bidirectional control with a blocking voltage of 1.2 kV. Designed for chassis mounting, it ensures efficient thermal management in demanding environments. The module features a gate trigger current (Igt) of 150 mA and a gate trigger voltage (Vgt) of 3 V, enabling precise control. Its non-repetitive surge current capability of 400A at 60Hz provides resilience against transient overloads. Operating across a temperature range of -40°C to 125°C, this component is suitable for industrial power control, motor drives, and power supply rectification in sectors such as renewable energy and industrial automation.
Additional Information
Series: F18RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Common Anode - SCR/Diode |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A @ 60Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.2 kV |
