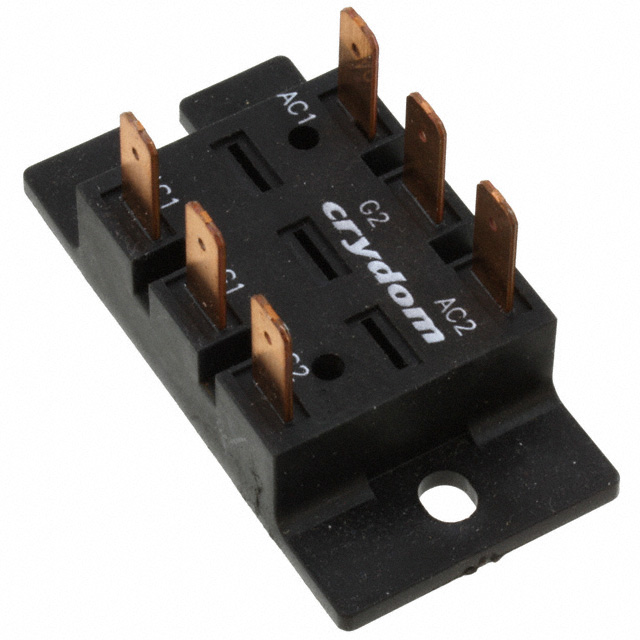

B554-2T
MOD DIODE SCR 25A 480VAC .250""QCManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
Sensata-Crydom B-2T Series SCR Module, part number B554-2T, is a 1.2 kV, 25A, 1-phase controller module featuring two SCRs. This chassis mount component offers a gate trigger current (Igt) of 60 mA and a gate trigger voltage (Vgt) of 2.5 V. The non-repetitive surge current (Itsm) is 250A at 60Hz. Designed for reliable operation across a temperature range of -40°C to 125°C (TJ), it is suitable for industrial applications requiring robust power control. The module utilizes .250" quick connect terminals for convenient integration. This component is a key element in power switching and control circuits across various industrial sectors.
Additional Information
Series: B-2TRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | 1-Phase Controller - All SCRs |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.2 kV |
