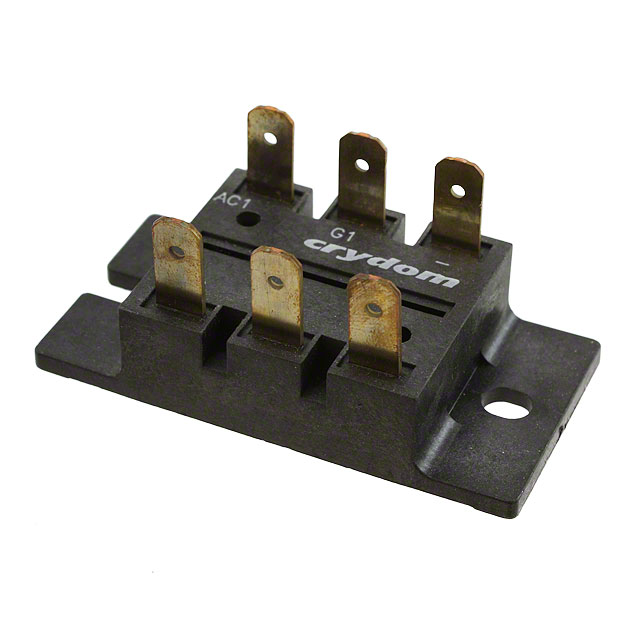

B513F-2T
MOD DIODE SCR 25A 280VAC .250""QCManufacturer: Sensata-Crydom
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 800 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
Additional Information
Series: B-2TRoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 800 V |
Request a Quote
Clients Also Buy

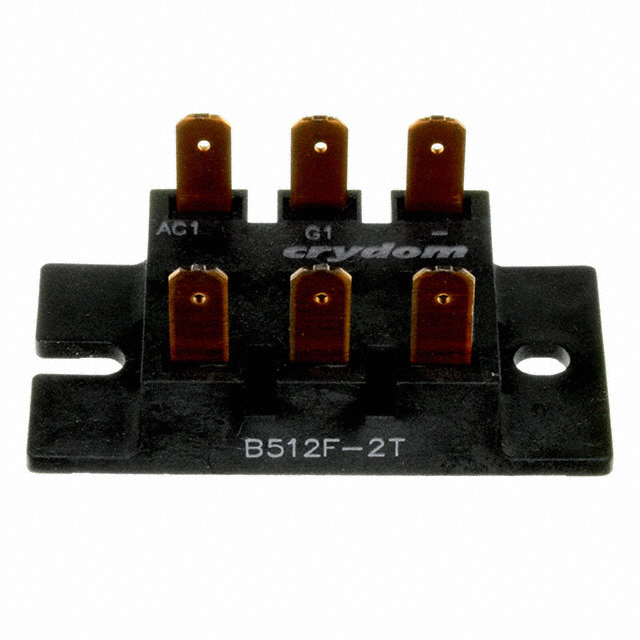

B512F-2T
MOD DIODE SCR 25A 240VAC .250""QC

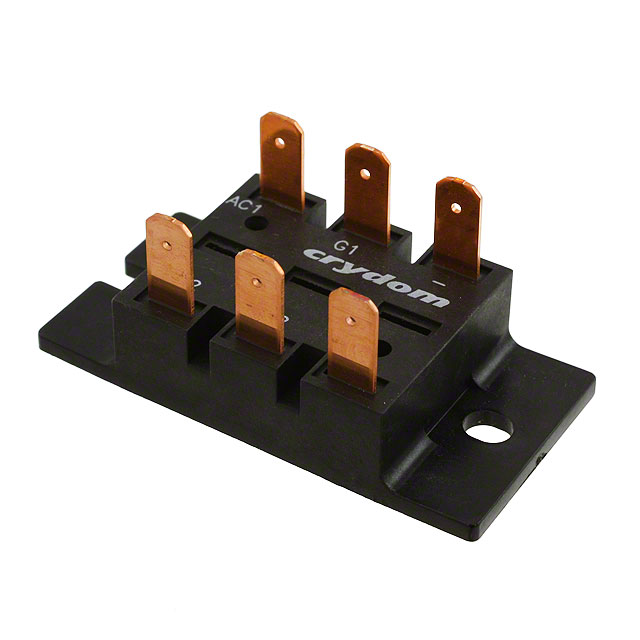

B512-2T-YDA
MOD DIODE SCR 25A 240VAC .250""QC

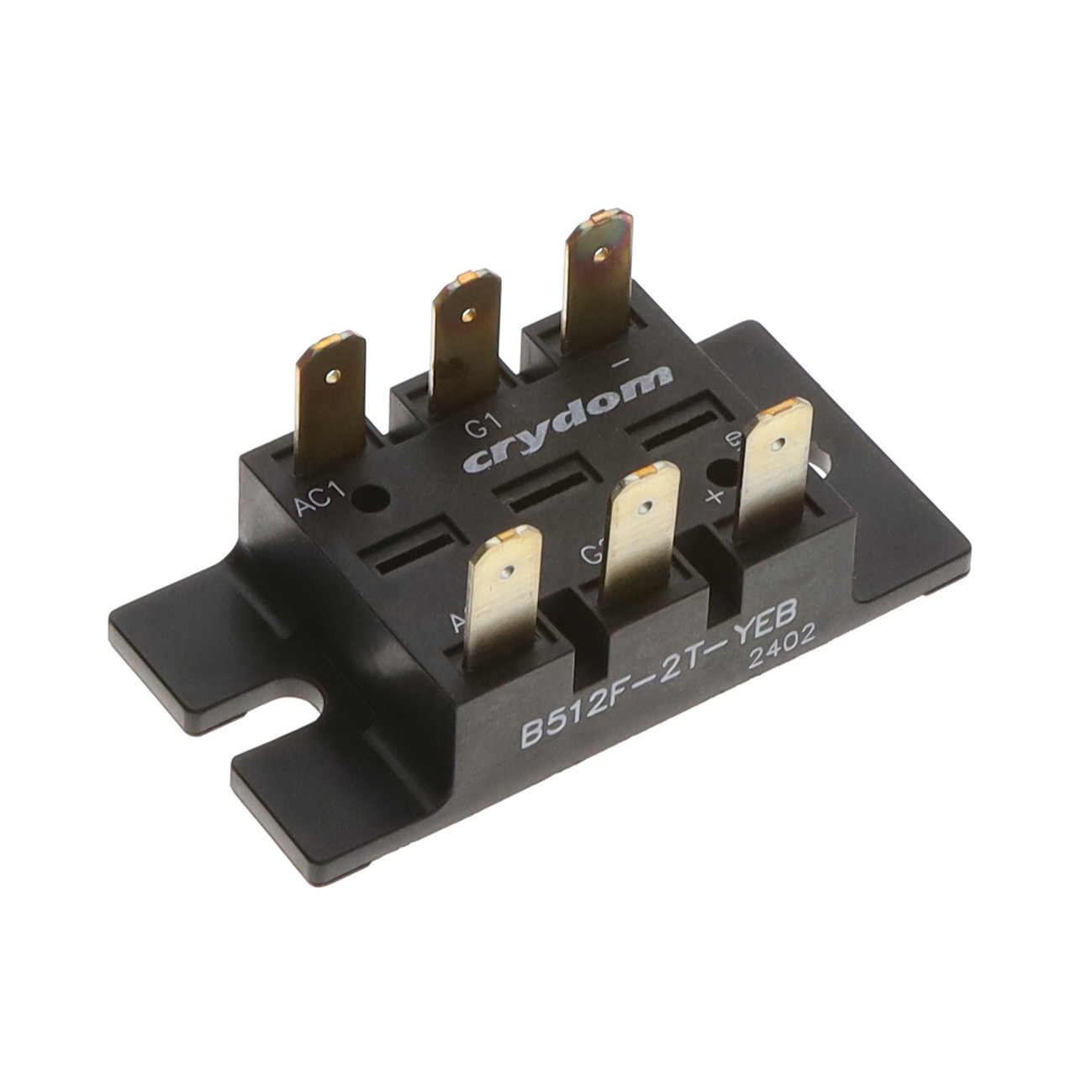

B512F-2T-YEB
