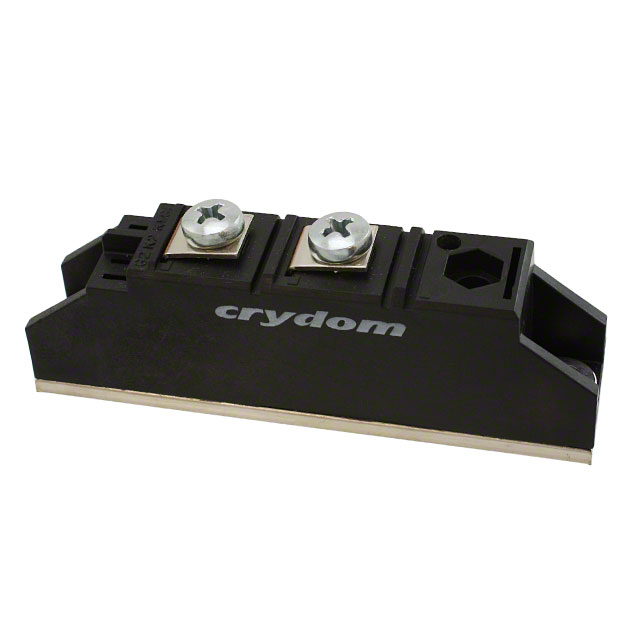

F1857RD1000
DIODE MODULE GP 1000V 55AManufacturer: Sensata-Crydom
Categories: Diode Arrays
Quality Control: Learn More
The Sensata-Crydom F1857RD1000 is a general-purpose diode module featuring a 1 pair series connection configuration. This component offers a maximum DC reverse voltage (Vr) of 1000 V and an average rectified current (Io) per diode of 55 A. With a standard recovery speed (greater than 500ns, > 200mA), it is suitable for applications requiring robust rectification. The module has a forward voltage (Vf) of 1.4 V at a forward current (If) of 165 A. Designed for chassis mounting, the F1857RD1000 operates within a junction temperature range of -40°C to 125°C. This component finds application in power supply units, motor drives, and industrial automation systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 55A (DC) |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 165 A |
