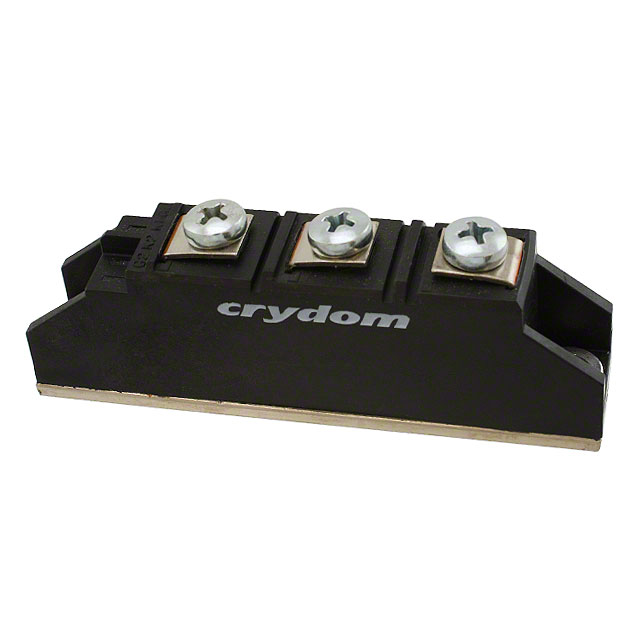

F1857CCD400
DIODE MODULE GP 400V 55AManufacturer: Sensata-Crydom
Categories: Diode Arrays
Quality Control: Learn More
Sensata-Crydom F1857CCD400 is a general-purpose diode module featuring a common cathode configuration. This component offers a reverse voltage rating of 400V (DC) and a maximum forward voltage of 1.4V at 165A. The average rectified current per diode is 55A (DC). Designed for chassis mounting, this module utilizes standard recovery technology with a speed characteristic of greater than 500ns at over 200mA. Operating temperature ranges from -40°C to 125°C (junction). This diode array is commonly employed in power conversion, motor control, and industrial automation applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 55A (DC) |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 165 A |
