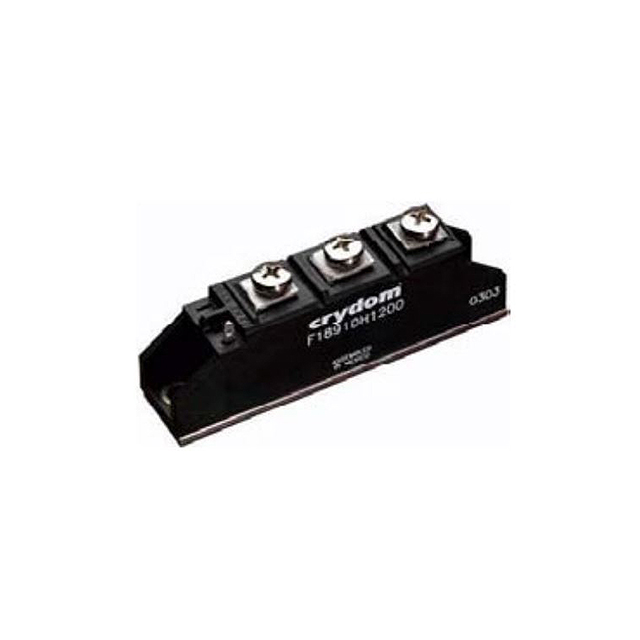

F1842CCD600
DIODE MODULE GP 600V 40AManufacturer: Sensata-Crydom
Categories: Diode Arrays
Quality Control: Learn More
Sensata-Crydom F1842CCD600 is a general-purpose diode module featuring a common cathode configuration. This module offers a maximum DC reverse voltage of 600V and a substantial average rectified current capability of 40A per diode. The forward voltage drop is rated at 1.4V at 120A. Designed for chassis mounting, this component utilizes standard recovery technology with a recovery time exceeding 500ns at currents above 200mA. The operating junction temperature range is from -40°C to 125°C. This diode array is suitable for applications in industrial power supplies, motor control, and electric vehicle charging systems. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A (DC) |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 120 A |
