F1842CCD400
DIODE MODULE GP 400V 40AManufacturer: Sensata-Crydom
Categories: Diode Arrays
Quality Control: Learn More

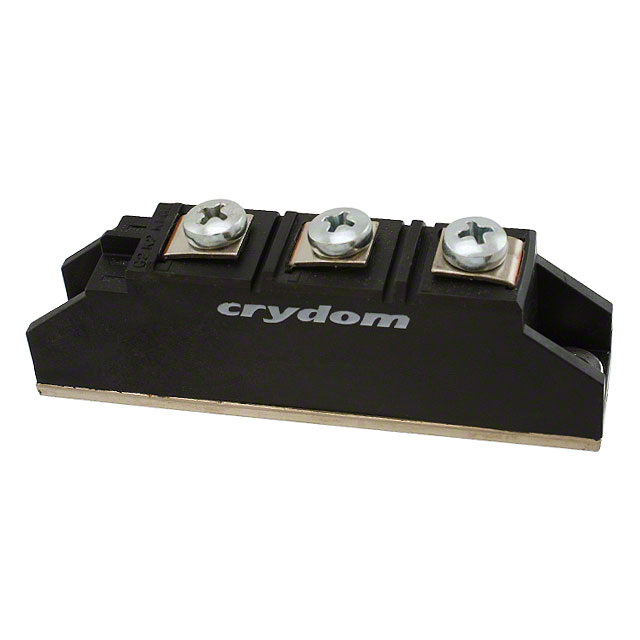

Sensata-Crydom F1842CCD400 is a diode module featuring a common cathode configuration. This component offers a maximum DC reverse voltage of 400V and a continuous average rectified current of 40A per diode. The forward voltage drop is specified at 1.4V with a forward current of 120A. Designed for standard recovery characteristics, its speed is greater than 500ns for Io > 200mA. The module is chassis mounted for efficient thermal management and operates within a junction temperature range of -40°C to 125°C. This device is suitable for applications in power control, industrial automation, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A (DC) |
| Supplier Device Package | Module |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 120 A |
