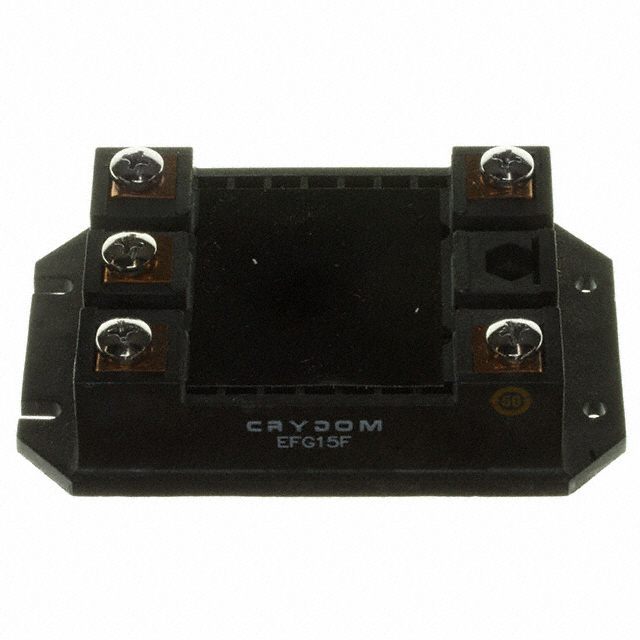

EFG15F
BRIDGE RECT 1P 1.2KV 125A MODULEManufacturer: Sensata-Crydom
Categories: Bridge Rectifiers
Quality Control: Learn More
Sensata-Crydom EFG15F, a single-phase bridge rectifier module, offers a robust solution for power conversion applications. This chassis-mount component features a maximum reverse voltage of 1.2 kV and a continuous average rectified current (Io) of 125 A. The standard technology employed ensures reliable operation across an extended temperature range of -40°C to 125°C (TJ). With a typical forward voltage drop (Vf) of 1.4 V at 100 A, the EFG15F is well-suited for use in industrial power supplies, welding equipment, and electric vehicle charging systems. The module is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | Module |
| Voltage - Peak Reverse (Max) | 1.2 kV |
| Current - Average Rectified (Io) | 125 A |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 100 A |
