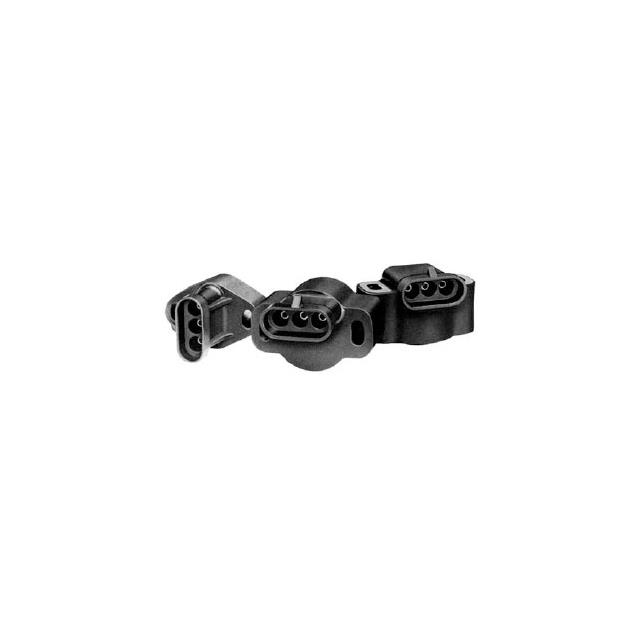

9800-682-1
SENSOR ROTARY 120 DEG CONNECTORManufacturer: Sensata-BEI Sensors
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Resistive Sensor Rotary Position Hole for Shaft Connector
Additional Information
Series: 9800RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Box with Connector |
| Mounting Type | Chassis Mount |
| Output | Resistive |
| Operating Temperature | -40°C ~ 135°C |
| Termination Style | Connector |
| Voltage - Supply | - |
| Linearity | ±2% |
| Linear Range | - |
| Actuator Type | Hole for Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±20% |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 85°, 0° ~ 120° |
| Output Signal | - |
| Resistance | 5 kOhms |
| Programmable | - |
