JANTX1N5806US.TR
DIODE GEN PURP 150V 2.5AManufacturer: Semtech Corporation
Categories: Single Diodes
Quality Control: Learn More
Diode 150 V 2.5A Surface Mount
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

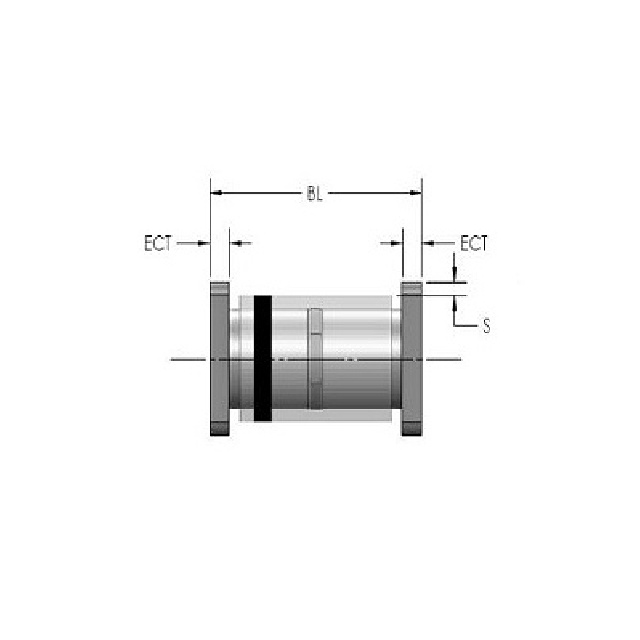

| Package / Case | SQ-MELF |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 25pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 2.5A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 150 V |
| Qualification | MIL-PRF-19500/477 |
