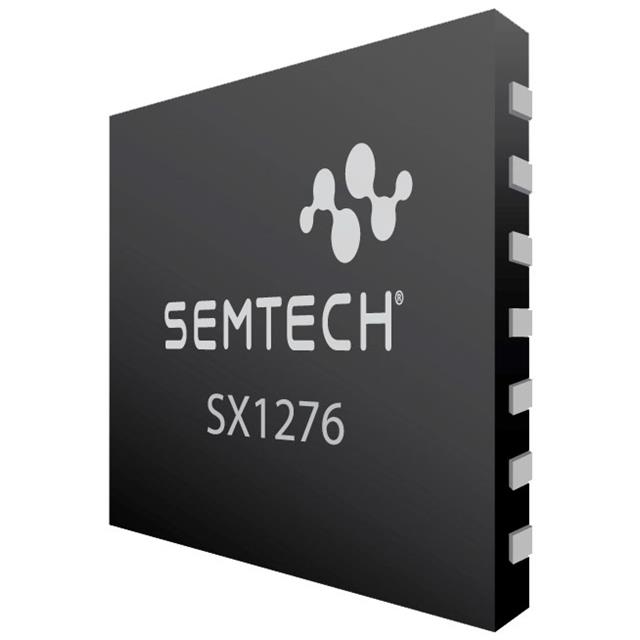

SX1276IMLTRT
IC RF TXRX 802.15.4 28QFNManufacturer: Semtech Corporation
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx Only 802.15.4 LoRa™ 137MHz ~ 1.02GHz 28-VQFN Exposed Pad
Additional Information
Series: LoRa™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VQFN Exposed Pad |
| Sensitivity | -148dBm |
| Mounting Type | Surface Mount |
| Frequency | 137MHz ~ 1.02GHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.7V |
| Power - Output | 20dBm |
| Protocol | LoRa™ |
| Current - Receiving | 10.8mA ~ 12mA |
| Data Rate (Max) | 300kbps |
| Current - Transmitting | 20mA ~ 120mA |
| Supplier Device Package | 28-QFN (6x6) |
| GPIO | 6 |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
