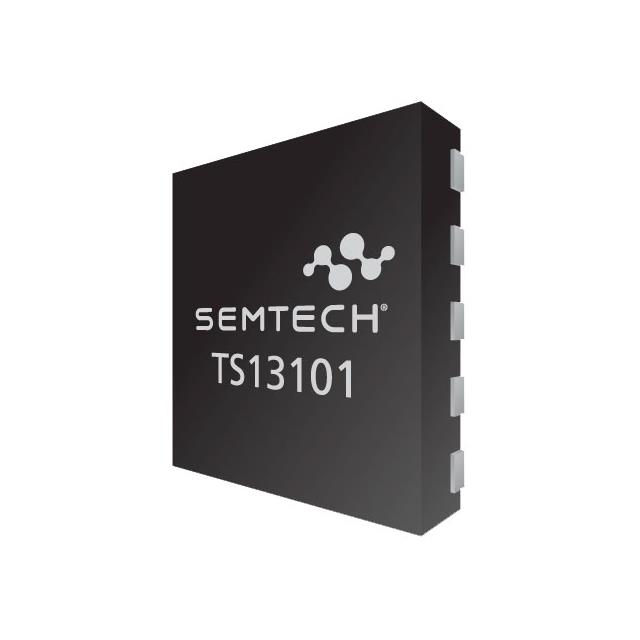

TS13101M-QFNR
IC PWR SWITCH 1:1 20QFNManufacturer: Semtech Corporation
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The Semtech Corporation TS13101M-QFNR is a high-performance power switch designed for demanding applications. This 1:1 power distribution switch offers a maximum output current of 4A, with a low on-resistance of typically 110mOhm. It features robust fault protection through current limiting, ensuring reliable operation under various load conditions. The TS13101M-QFNR operates with an input voltage range of 2.7V to 5.5V and supports load voltages up to 60V. Its 20-QFN (4x4) package with an exposed pad facilitates efficient heat dissipation, making it suitable for surface mount configurations. This component is commonly utilized in industrial automation, telecommunications infrastructure, and high-reliability computing systems. The device is supplied in tape and reel packaging for efficient automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | Clock |
| Switch Type | AC Switch |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | - |
| Rds On (Typ) | 110mOhm |
| Input Type | - |
| Voltage - Load | 60V (Max) |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Current - Output (Max) | 4A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 20-QFN (4x4) |
| Fault Protection | Current Limiting |
Request a Quote
Clients Also Buy

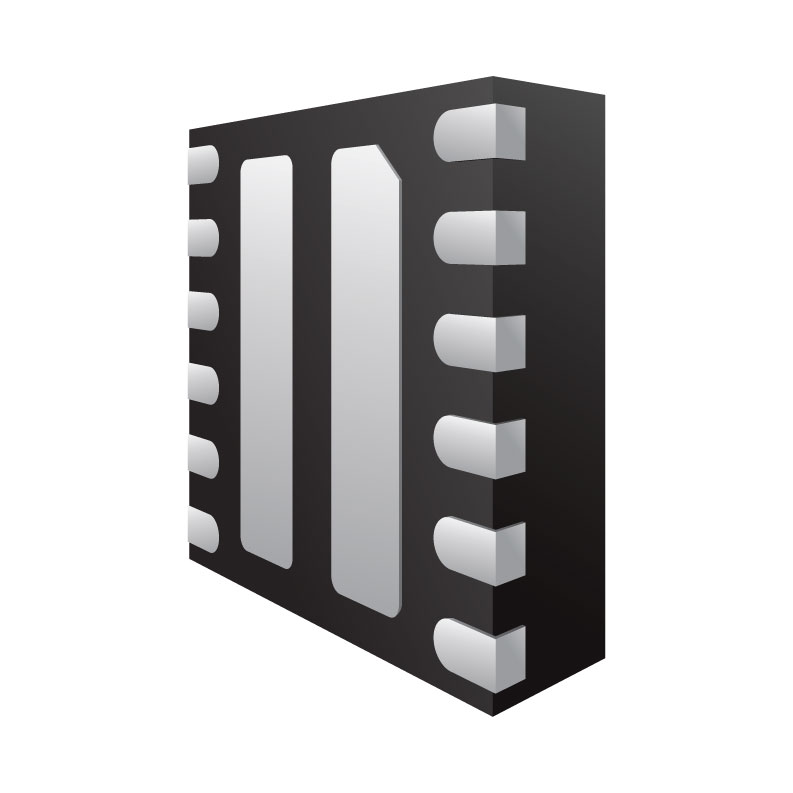

HS2950P.M
29V 5A LOAD PROTECTION HOTSWITCH
SC728CSTRT
IC PWR SWITCH N-CHAN 1:1 4CSP

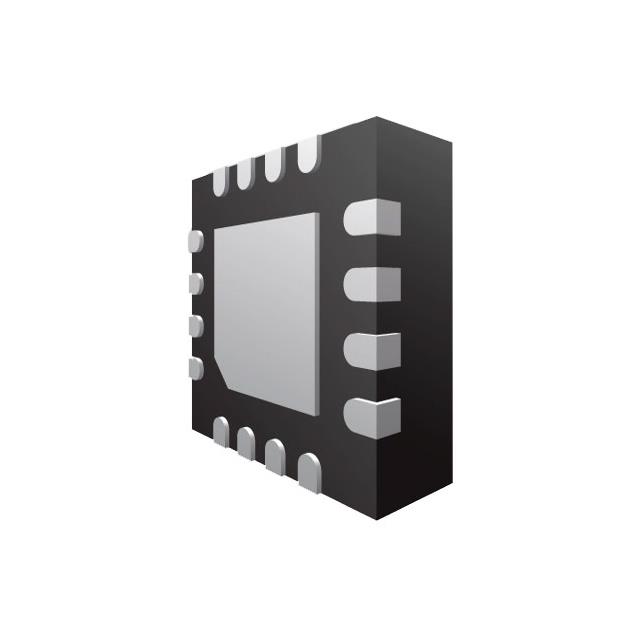

TS13103-QFNR
