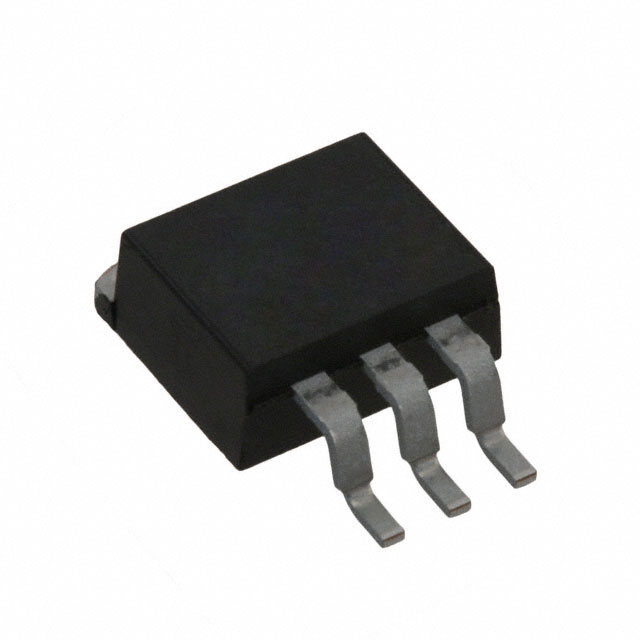

SC1566IM-2.5TRT
IC REG LINEAR 2.5V 3A TO263Manufacturer: Semtech Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Semtech Corporation SC1566IM-2-5TRT is a positive fixed output linear voltage regulator IC. This device delivers a stable 2.5V output with a maximum output current of 3A. Designed for demanding applications, it features over-current and over-temperature protection. The quiescent current is a low 35 µA, and the input voltage range extends up to 5.5V. With a dropout voltage of 0.6V at 3A, it is suitable for power-sensitive designs. The SC1566IM-2-5TRT is supplied in a TO-263 package for surface mounting and is provided on tape and reel. This component finds utility in industrial automation, automotive systems, and consumer electronics requiring reliable power regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 35 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.6V @ 3A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 1.75 mA |
