SC9301MLTRT
IC REG BUCK ADJ 10A 32MLPQManufacturer: Semtech Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Semtech Corporation EcoSpeed® SC9301MLTRT is a high-performance, adjustable buck switching regulator IC designed for demanding applications. This device provides a positive adjustable output voltage ranging from 0.6V to 5.5V, capable of delivering up to 10A of output current. Featuring a synchronous rectifier topology, it optimizes efficiency across its wide input voltage range of 3V to 28V. The SC9301MLTRT operates with a selectable switching frequency between 200kHz and 1MHz, allowing for a balance between component size and performance. Packaged in a 32-WFQFN exposed pad (32-MLPQ 5x5), it is suitable for surface mount applications and operates reliably in industrial environments from -40°C to 125°C (TJ). This component is widely utilized in power management solutions for telecommunications, industrial automation, and data center infrastructure.
Additional Information
Series: EcoSpeed®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 10A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1MHz |
| Voltage - Input (Max) | 28V |
| Topology | Buck |
| Supplier Device Package | 32-MLPQ (5x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
Clients Also Buy

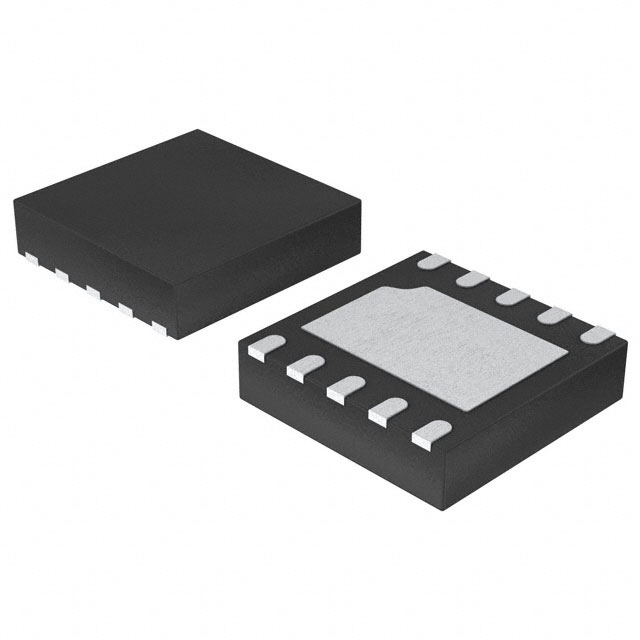

SC3303MLTRT
