SC4624MLTRT
IC REG BUCK ADJ 4A 20MLPQManufacturer: Semtech Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More

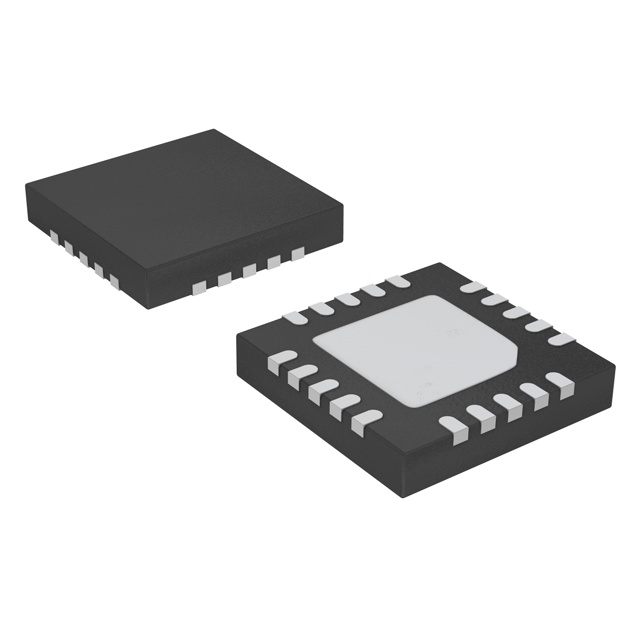

The Semtech Corporation SC4624MLTRT is a high-performance, adjustable output buck switching regulator designed for efficient power conversion. This device features a 4A output current capability, supporting a configurable output voltage range from 0.5V up to 5.5V. Operating with an input voltage range of 2.3V to 5.5V, the SC4624MLTRT utilizes a synchronous rectification topology, minimizing conduction losses and enhancing efficiency. Its adjustable switching frequency can be set between 200kHz and 2MHz, allowing for optimization of component size and performance. The SC4624MLTRT is housed in a 20-MLPQ (4x4) package with an exposed pad for improved thermal management, suitable for surface mounting. Its robust design and operational temperature range of -40°C to 125°C make it well-suited for applications in portable electronics, industrial power supplies, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 4A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 2MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-MLPQ (4x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 0.5V |
