SC191AWLTRT
IC REG BUCK 1.2V 330MA 8MLPDManufacturer: Semtech Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Semtech Corporation SC191AWLTRT is a highly efficient buck switching regulator designed for step-down voltage conversion. This device features a fixed 1.2V output voltage, capable of delivering up to 330mA of current from a single positive output. Its 1MHz switching frequency, combined with integrated synchronous rectification, contributes to excellent power conversion efficiency. The SC191AWLTRT operates within a wide input voltage range of 2.7V to 5.5V, making it suitable for various power management applications.

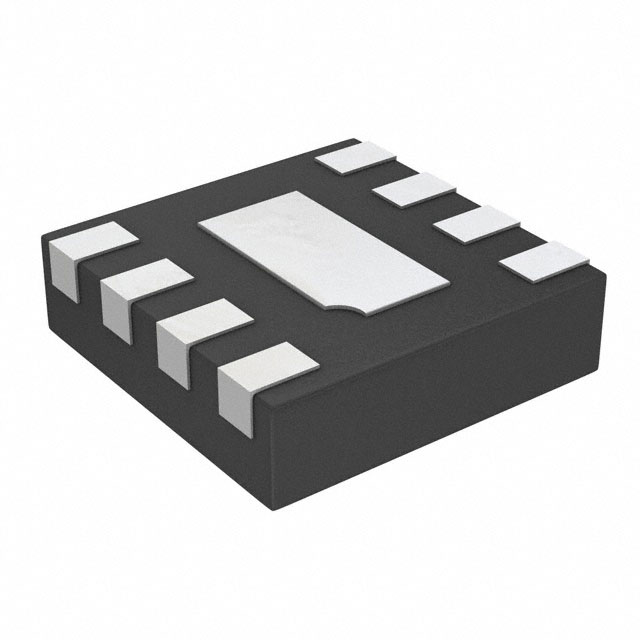

This component is housed in an 8-MLPD (2.3x2.3) package, facilitating surface mount assembly. The operating temperature range is -40°C to 85°C (TA). The SC191AWLTRT finds application in portable electronics, battery-powered devices, and other systems requiring compact and efficient DC-DC conversion. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 330mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 8-MLPD (2.3x2.3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 1.2V |
