GP2D005A170B
DIODE SIL CARB 1.7KV 5A TO247-2Manufacturer: SemiQ
Categories: Single Diodes
Quality Control: Learn More

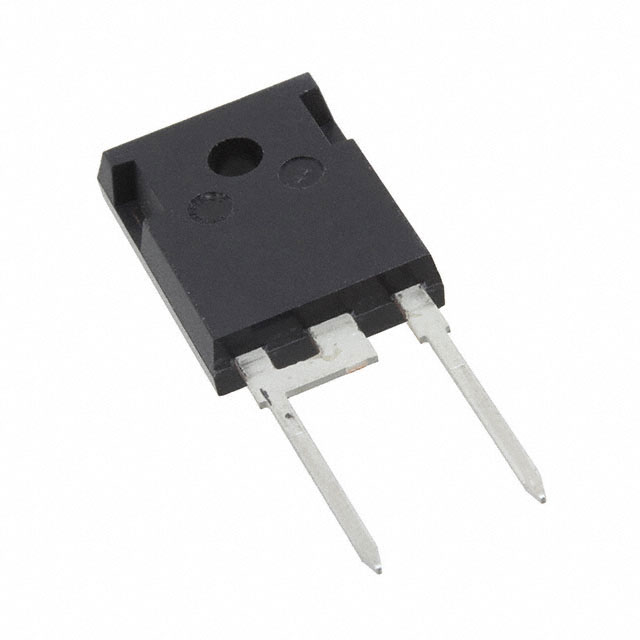

Diode 1700 V 5A Through Hole TO-247-2
Additional Information
Series: Amp+™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 406pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 1.75 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1700 V |
