GP2D030A120U
DIODE ARR SIC 1200V 50A TO247-3Manufacturer: SemiQ
Categories: Diode Arrays
Quality Control: Learn More

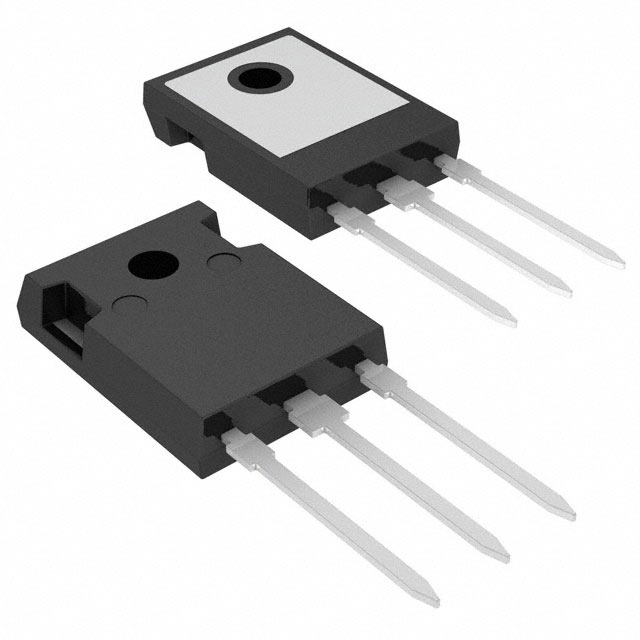

The SemiQ Amp+™ Diode Array, part number GP2D030A120U, is a Silicon Carbide Schottky device featuring a common cathode configuration with two diodes. This through-hole component, housed in a TO-247-3 package, is rated for a maximum DC reverse voltage of 1200 V and an average rectified current of 50 A per diode. The forward voltage drop is a maximum of 1.8 V at 15 A. Reverse leakage current is specified at 30 µA at 1200 V. The device operates across a junction temperature range of -55°C to 175°C and exhibits no significant recovery time for currents exceeding 500 mA. This component is suitable for demanding applications in power factor correction, electric vehicle charging, and industrial power supplies.
Additional Information
Series: Amp+™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 50A (DC) |
| Supplier Device Package | TO-247-3 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 15 A |
| Current - Reverse Leakage @ Vr | 30 µA @ 1200 V |
