104990121
DISP 14SEG 0.54"" DBL AMB 18DIPManufacturer: Seeed Technology Co., Ltd
Categories: LED Character and Numeric
Quality Control: Learn More

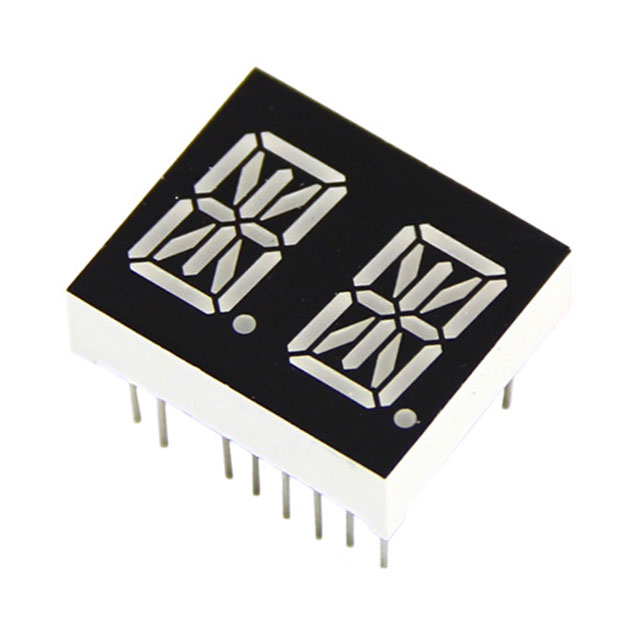

Seeed Technology Co., Ltd. offers the 104990121, a 2-character, 14-segment alphanumeric display module. This component features a bright amber illumination with a peak wavelength of 603nm and a millicandela rating of 105mcd. Designed with a common cathode configuration, it operates at a typical forward voltage of 2V and a test current of 20mA, with a maximum power dissipation of 50mW. The digit size is 0.54 inches (13.72mm), housed within an 18-DIP (0.600", 15.24mm) package. The overall dimensions are 0.988" H x 0.835" W x 0.335" D (25.10mm x 21.20mm x 8.50mm). This display module is commonly utilized in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Amber |
| Display Type | 14-Segment, Alphanumeric |
| Size / Dimension | 0.988"" H x 0.835"" W x 0.335"" D (25.10mm x 21.20mm x 8.50mm) |
| Number of Characters | 2 |
| Millicandela Rating | 105mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.54"" (13.72mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 603nm |
| Power Dissipation (Max) | 50mW |
