311130001
ROTARY ENCODER MECHANICAL 20PPRManufacturer: Seeed Technology Co., Ltd
Categories: Encoders
Quality Control: Learn More

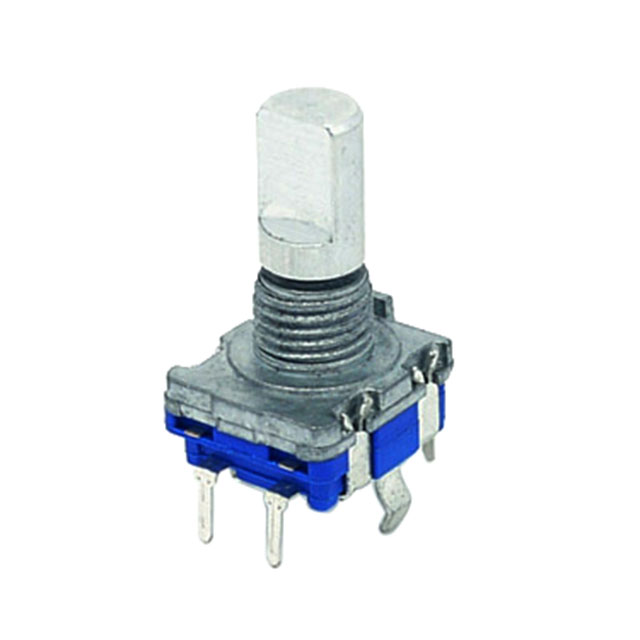

Seeed Technology Co., Ltd presents the 311130001, a mechanical rotary encoder designed for precise rotational input. This vertical mount component features 20 pulses per revolution (PPR) and provides quadrature (incremental) output, making it suitable for applications requiring accurate position sensing and control. The encoder is equipped with a 6mm diameter knurled end actuator for tactile feedback and includes detents for defined rotational steps. Its PC pin termination style ensures robust connectivity for PCB through-hole mounting, facilitating integration into compact designs. This component is commonly utilized in industrial automation, audio equipment, and control interfaces where reliable and granular rotational feedback is essential. The 311130001 operates at a 5V supply voltage.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Knurled End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
